Overview

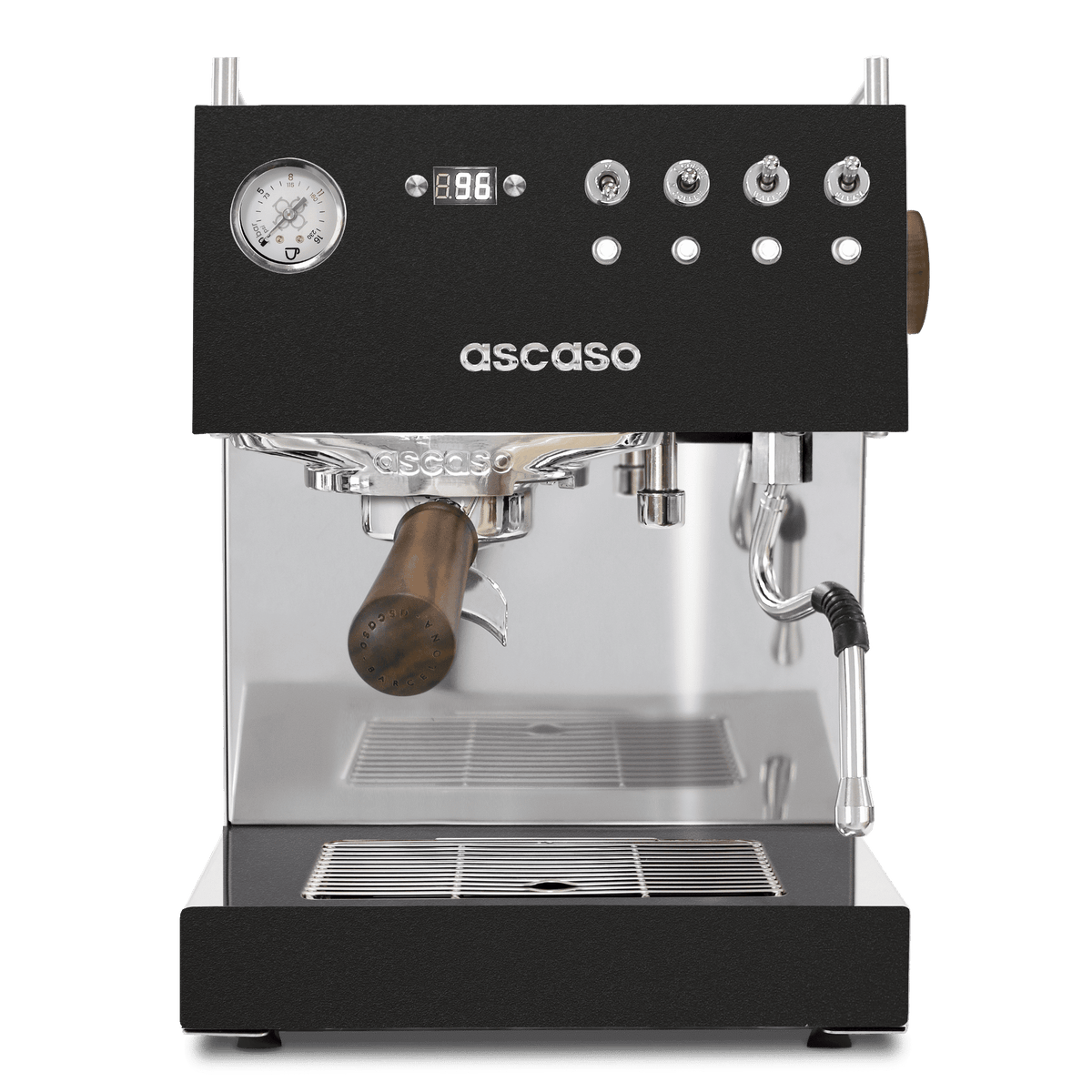

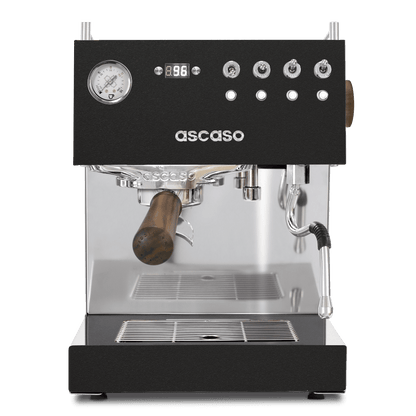

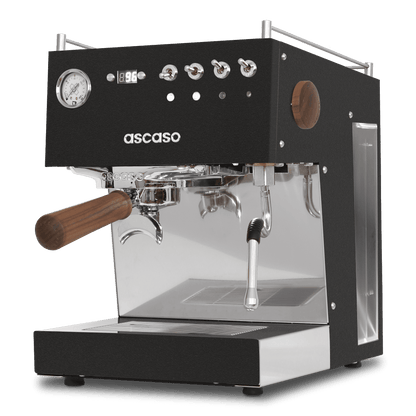

Bring a faster, more capable espresso workflow home with the Ascaso Steel DUO V3 PID Espresso Machine.
Designed for serious home baristas, the Steel DUO V3 combines dual thermoblocks, PID temperature control, programmable volumetric dosing, pre-infusion, an adjustable OPV, analog pressure gauge, and a professional 58mm portafilter in a compact, design-forward machine.
Its defining advantage is the dual thermoblock system. One heating circuit is dedicated to espresso while the second is dedicated to steam, allowing you to brew and steam simultaneously rather than waiting for a single heating system to transition between functions.
A walnut-handled 58mm portafilter and matching steam knob add a premium tactile finish, while the 67 oz reservoir, fast warm-up, programmable controls, and no-burn steam wand make the Steel DUO practical for everyday use.
For home baristas who regularly prepare cappuccinos, lattes, flat whites, or multiple drinks at once, the Steel DUO offers an appealing combination of speed, control, compact dimensions, and professional-style workflow.
Key Features
- Dual Thermoblock System — Separate heating circuits for espresso and steam allow both functions to operate simultaneously.
- Brew & Steam at the Same Time — Pull espresso while texturing milk for a faster, more efficient workflow.
- PID Temperature Control — Digital temperature adjustment in one-degree increments provides greater control over extraction.
- Independent Brew & Steam Heating — Dedicated thermoblocks prevent the need to switch one heating system between brewing and steaming temperatures.
- Programmable Pre-Infusion — Customize the beginning of the extraction cycle before full brewing pressure is applied.
- Volumetric Shot Programming — Program single and double shot volumes for greater repeatability.
- Adjustable OPV — The over-pressure valve provides additional control over brewing pressure.
- Analog Pressure Gauge — Monitor pressure during extraction for additional feedback while dialing in espresso.
- Professional 58mm Portafilter — Full-size brewing platform supports a broad ecosystem of espresso baskets and accessories.
- Real Walnut Portafilter Handle — Adds a premium tactile and visual element to the machine.
- Walnut Steam Knob — Provides traditional manual control over steaming.
- No-Burn Steam Wand — Designed for more comfortable operation during milk texturing.
- Continuous Steam Capability — Dedicated steam thermoblock supports ongoing steam production for home milk-drink preparation.
- Reduced Vibration & Noise — Pump and machine construction are designed to help minimize vibration during operation.
- Fast Warm-Up — Supplied specifications list approximately 3 minutes 30 seconds to brew-ready status.
- 67 oz Water Reservoir — Provides generous capacity for multiple drinks between refills.
- Fresh-Water Brewing — Water is heated as needed rather than remaining continuously heated in a traditional brew boiler.
- AISI 316 Stainless Steel Water Circuit — Stainless steel is used throughout the specified internal water path.
- Cup Warmer — Integrated warming surface helps prepare cups before brewing.
- Automatic Shutoff — Provides convenient power management.
- E.S.E. Pod Compatible — Supports E.S.E. pods without requiring an adaptation kit.
Why This Product Stands Out
The Steel DUO's biggest advantage is simple:
You don't have to choose between brewing espresso and steaming milk.
Its dual thermoblock architecture allows both processes to happen simultaneously.
That makes a meaningful difference when preparing:
- Cappuccinos
- Lattes
- Flat whites
- Cortados
- Multiple drinks for family or guests
The Steel DUO also provides substantially more control than a basic home espresso appliance.
With PID temperature adjustment, programmable pre-infusion, volumetric dosing, an adjustable OPV, pressure gauge, and professional 58mm brewing platform, you have the tools to refine your espresso as your technique develops.
It's a machine designed to combine everyday convenience with enthusiast-level control.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Ascaso |
| Model | Steel DUO V3 PID |
| Intended Use | Residential / Home Use Only |
| Heating System | Dual Thermoblock |
| Simultaneous Brew & Steam | Yes |
| Width | 11 1/8" with knob / 10.5" without knob |
| Depth | 12.5" |
| Depth with Portafilter | Approximately 17" |
| Height | 15" |
| Power | 2100W |
| Voltage | 120V |
| Plug Type | NEMA 5-20 |
| Electrical Requirement | 20-Amp Circuit |
| Adapter | Included according to supplied specifications |
| Cord Length | 50" |
| Programmability | PID, Pre-Infusion, Shot Time / Volumetric Dosing |
| Case Material | Aluminum per supplied specification table |
| Heating Block Material | Stainless Steel-Lined Aluminum |
| Cup Clearance | 3" |
| Reservoir Capacity | 67 oz |
| Solenoid Valve | Yes |
| Cup Warmer | Yes |
| Portafilter Size | 58mm |
| Available Portafilter Styles | Bottomless, E.S.E., Pressurized & Non-Pressurized |
| Approx. Brew Warm-Up | 3 Minutes 30 Seconds |
| Pod Friendly | Yes — Without Adaptation |
| Water Source | Internal Reservoir |
| Auto Shutoff | Yes |
| Auto On | No |
| Pre-Infusion | Yes |
| Water Reservoir Material | Polycarbonate, NSF/FDA Approved for Food Use per supplied specifications |
| Flexible Tube Material | Silicone |
| Flowmeter Body Material | PBT (Arnite) 35% GF, NSF Compliant |
Who This Is For
The Ascaso Steel DUO V3 is designed for home espresso enthusiasts who want a faster, more capable workflow than a traditional single-heating-system machine.
It's particularly well suited for:
- Serious home baristas
- Latte and cappuccino drinkers
- Couples preparing multiple drinks in the morning
- Espresso enthusiasts upgrading from entry-level equipment
- Users who want to brew and steam simultaneously
- Buyers who value PID temperature control
- Users who want a professional 58mm portafilter
- Home baristas who want programmable shot dosing
- Customers who want adjustable brewing pressure
- Design-conscious kitchens and home coffee stations
- Buyers seeking prosumer capability without a large commercial footprint
Dual Thermoblock Performance
The Steel DUO V3 uses two separate thermoblock heating systems.
Brew Thermoblock
Dedicated to espresso extraction.
Steam Thermoblock
Dedicated to milk steaming.
Because each function has its own heating system, you can pull espresso and steam milk at the same time.
For milk-drink enthusiasts, that changes the workflow from:
Brew → Wait → Steam
to:
Brew + Steam
That is one of the strongest reasons to choose the Steel DUO over a single-thermoblock machine.
PID Temperature Control
The digitally displayed PID allows brewing temperature to be adjusted in one-degree increments.
This gives you another variable to work with when dialing in different:
- Espresso blends
- Single-origin coffees
- Roast levels
- Extraction recipes
Combined with grind size, dose, yield, pre-infusion, and pressure, temperature control gives the home barista greater ability to refine each espresso.
Adjustable Pressure Control
The Steel DUO includes an adjustable over-pressure valve (OPV).
This provides additional control over the pressure delivered during brewing.
The integrated analog pressure gauge then gives you visual feedback during extraction.
Together, these features provide more information and control when dialing in espresso than machines with fixed pressure and no gauge.
Programmable Volumetric Dosing
Once you've developed a preferred recipe, the Steel DUO can help make your daily workflow more repeatable.
Programmable functions include:
- Pre-infusion
- Single-shot volume
- Double-shot volume
- Auto-standby
This combination provides convenience without eliminating the ability to experiment with espresso parameters.

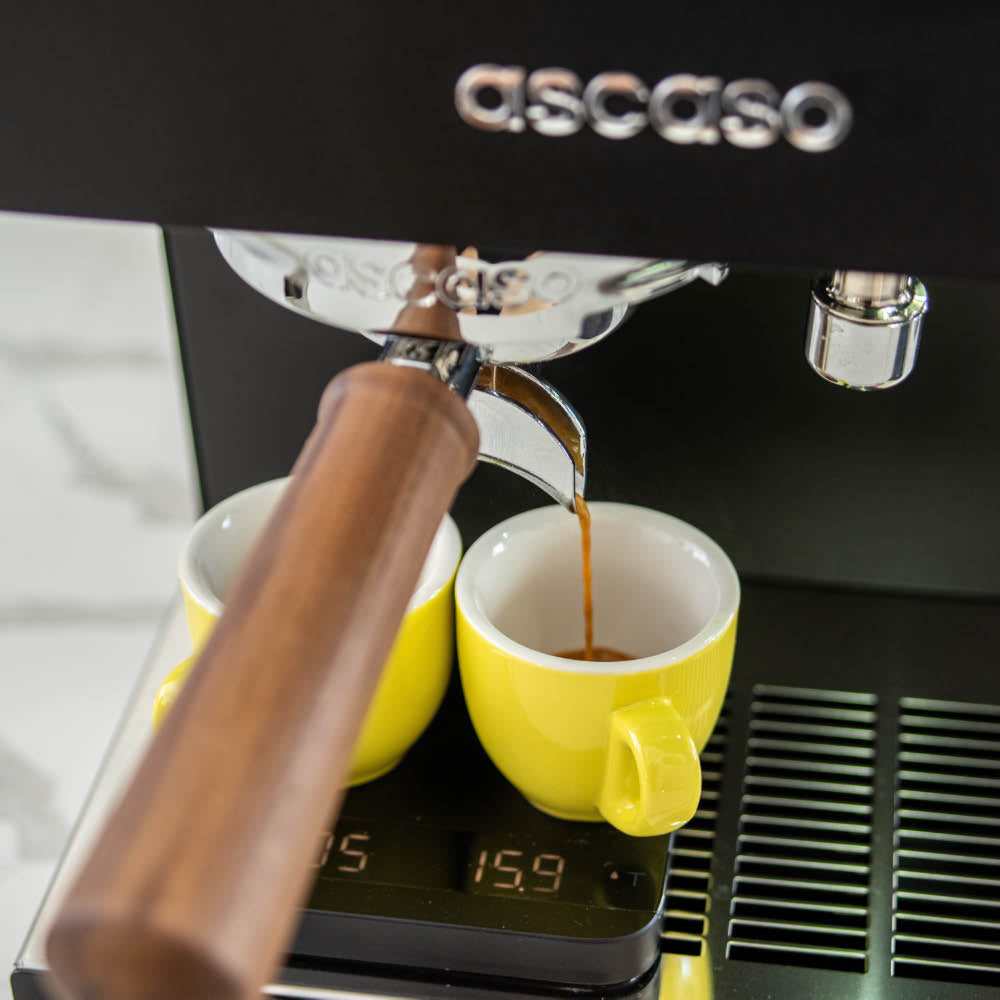

Professional 58mm Portafilter
The Steel DUO uses a 58mm professional-style portafilter.
The supplied double portafilter features a real walnut wood handle, combining professional dimensions with Ascaso's distinctive design language.
The 58mm format also opens the door to a broad selection of compatible:
- Precision baskets
- Tampers
- Distribution tools
- Dosing funnels
- Bottomless portafilters
- Other espresso accessories
Steam Performance
A dedicated steam thermoblock gives the Steel DUO the ability to generate steam independently from the brew circuit.
That means you don't have to wait for the espresso heating system to transition to steaming temperature.
The machine also features a manual walnut steam knob and no-burn steam wand, preserving the hands-on control many home baristas prefer when texturing milk.
This makes the Steel DUO particularly compelling for households where milk-based espresso drinks are part of the daily routine.

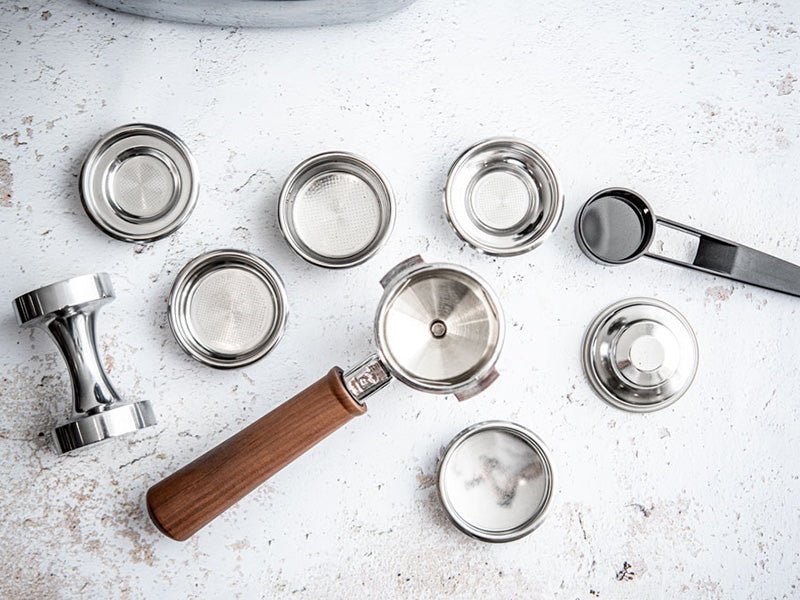

Included Accessories & Professional Baskets
The Steel DUO V3 includes a comprehensive starter package:
- Traditional 7g basket
- Traditional 14g basket
- Traditional 18g basket
- Pressurized 7g basket
- Pressurized 14g basket
- E.S.E. capsule holder
- Backflush disc
- Stainless steel standard shower
- Aluminum tamper
- 58mm double portafilter with walnut handle
- Filter-holder gasket
- Single steam tip
- Coffee scoop
- Shower brush
The mix of pressurized and traditional baskets gives newer users an approachable starting point while allowing progression toward a more traditional espresso workflow.
Steel DUO V3 vs. Dream PID
| Feature | Steel DUO V3 | Dream PID |
|---|---|---|
| Heating Architecture | Dual Thermoblock | Single Thermoblock |
| Simultaneous Brew & Steam | Yes | No |
| PID | Yes | Yes |
| Portafilter | 58mm | 58mm |
| Adjustable OPV | Yes | Yes |
| Pressure Gauge | Yes | Yes |
| Programmable Pre-Infusion | Yes | Yes |
| Programmable Shots | Yes | Yes |
| Water Reservoir | 67 oz | 43 oz |
| Power | 2100W | 1100W |
| Best For | Frequent milk drinks & multi-drink workflow | Compact home espresso & everyday prosumer use |
Choose the Dream PID when compactness, design, and a straightforward home espresso workflow are the priority.
Choose the Steel DUO V3 when you regularly prepare milk drinks and want simultaneous brewing and steaming, a larger reservoir, and a faster multi-drink workflow.
Steel DUO V3 vs. Steel DUO PLUS V3
The Steel DUO and Steel DUO PLUS share the same fundamental advantage: dual heating circuits designed for simultaneous brewing and steaming.
The PLUS builds on that foundation with additional enthusiast-focused equipment.
| Feature | Steel DUO V3 | Steel DUO PLUS V3 |
|---|---|---|
| Dual Thermoblocks | Yes | Yes |
| Simultaneous Brew & Steam | Yes | Yes |
| PID Control | Yes | Yes |
| Portafilter Size | 58mm | 58mm |
| Steam Control | Walnut Rotary Knob | Walnut Joystick Lever |
| Shower Screen | Standard | Competition Screen |
| Pressure Gauge | Yes | Yes |
| OPV | Adjustable | Externally Adjustable |
| Bottomless Portafilter Included | Not Listed | Yes |
| Steam Tips | Single | Single + Three-Hole |
| Largest Included Basket | 18g | 21g |
| Hot-Water Tap | Standard Configuration Differs | Dedicated Tap |
| Positioning | Core Dual-Thermoblock Performance | Complete Enthusiast Configuration |
Choose the Steel DUO V3 when the dual-thermoblock brew-and-steam capability is what matters most.
Choose the Steel DUO PLUS V3 when you want the more complete enthusiast package—including the joystick steam control, competition shower screen, bottomless portafilter, expanded basket selection, and other upgrades—from day one.
Energy-Conscious Thermoblock Design
Rather than maintaining large traditional boilers continuously at operating temperature, the Steel DUO heats water through its thermoblock architecture.
This delivers up to approximately 50% lower energy consumption under its comparison testing.
Actual energy consumption will vary depending on settings, frequency of use, standby behavior, drink volume, and the equipment being compared.
Available Finishes
The Steel DUO V3 is offered in:
- Black
- White
- Inox / Stainless Steel
This gives the machine enough visual flexibility to complement modern, minimalist, industrial, and more traditional kitchens.

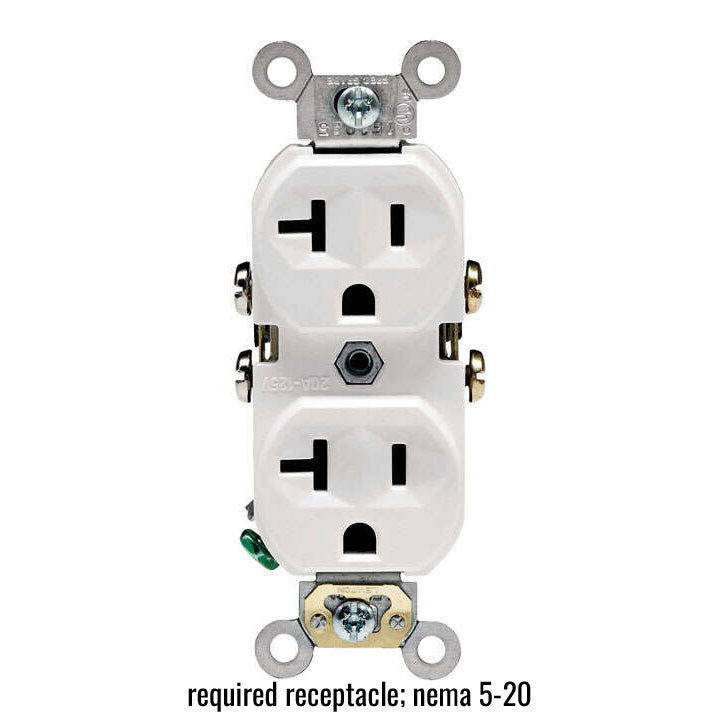

Important Electrical Requirement
The Steel DUO V3 requires an appropriate 20-amp electrical circuit.
The supplied specifications list:
120V • 2100W • NEMA 5-20 Plug • 20-Amp Circuit Required
Confirm that the intended installation location has appropriate electrical service before ordering.
The supplied specifications state that an adapter is included. However, an adapter does not increase the electrical capacity of an undersized branch circuit.
If you're uncertain whether your outlet and circuit are suitable, consult a qualified electrician before installation.
Residential Use Only
The Ascaso Steel DUO V3 is designed specifically for residential use.
According to the supplied product information, it is not approved for commercial or café settings.
Commercial use may fall outside the machine's intended operating conditions and may affect warranty coverage.
Warranty
The warranty includes:
12-Month General Warranty
Coverage for qualifying defects in workmanship and materials during domestic use.
5-Year Thermoblock & Group Warranty
Coverage for qualifying thermoblock heating assemblies and groups according to Ascaso's domestic-use warranty terms.
All warranty coverage remains subject to the manufacturer's complete terms, exclusions, maintenance requirements, and proof-of-purchase provisions.
Care & Maintenance
For long-term performance:
- Purge and wipe the steam wand after milk use.
- Clean the portafilter and baskets regularly.
- Wipe the group and shower screen.
- Empty and clean the drip tray as needed.
- Backflush according to Ascaso's instructions.
- Keep the internal water reservoir clean.
- Use water that meets Ascaso's recommended specifications.
- Follow Ascaso's current cleaning and descaling instructions.
- Disconnect power and allow the machine to cool before deeper maintenance.
Common Questions
Can the Steel DUO V3 brew and steam at the same time?
Yes. Its separate brew and steam thermoblocks allow simultaneous operation.
Does it have two traditional boilers?
No. It uses a dual thermoblock heating system rather than two conventional storage boilers.
Does it have PID temperature control?
Yes. Temperature can be digitally adjusted in one-degree increments.
Does it have programmable pre-infusion?
Yes.
Can I program single and double shots?
Yes. The Steel DUO supports programmable volumetric dosing.
Can brewing pressure be adjusted?
Yes. The machine includes an adjustable OPV.
Does it have a pressure gauge?
Yes. An analog pressure gauge provides visual feedback during extraction.
What size portafilter does it use?
A professional-style 58mm portafilter.
Does it include a grinder?
No. A separate espresso-capable burr grinder is required.

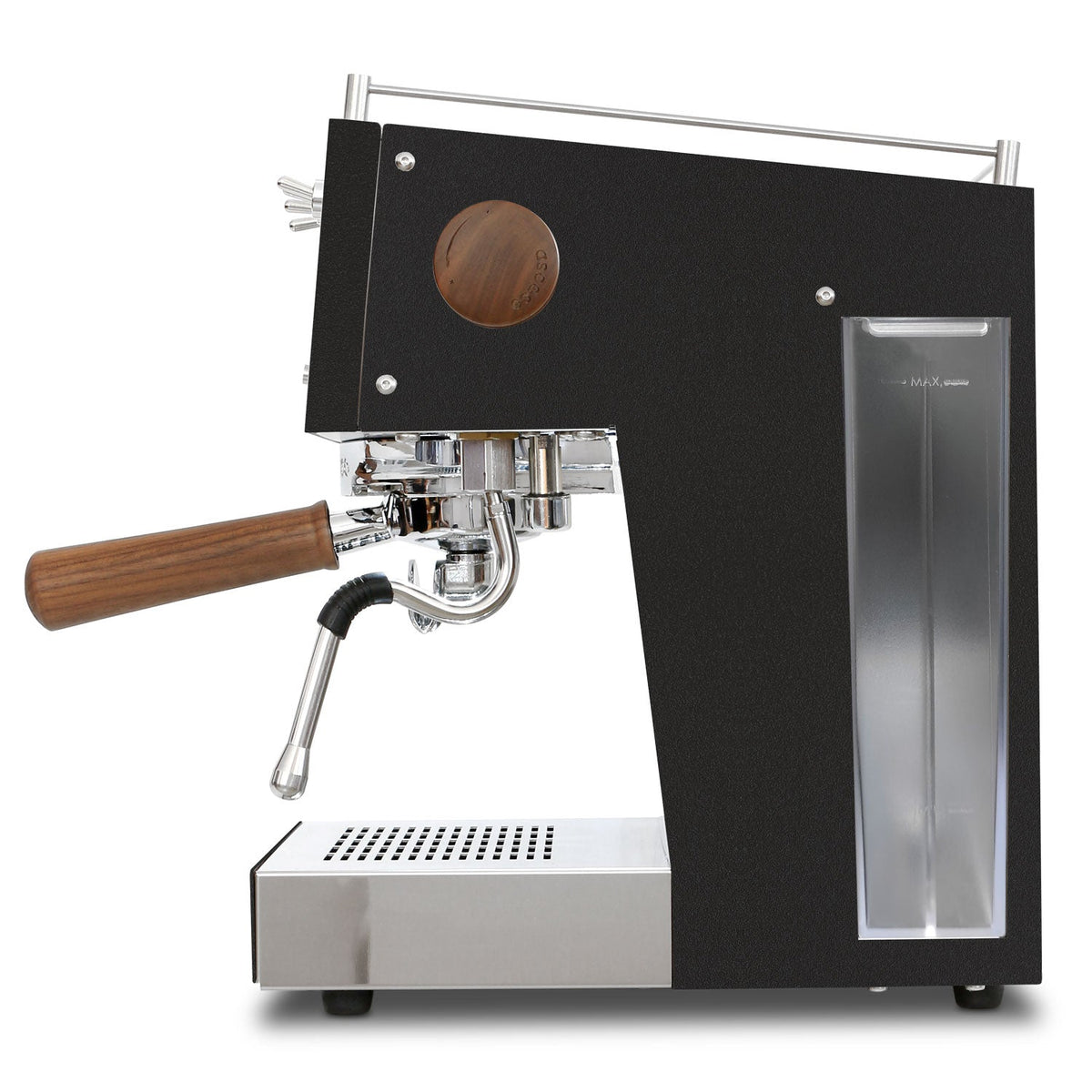

How large is the water reservoir?
Approximately 67 ounces.
How quickly does it warm up?
Approximately 3 minutes 30 seconds to brew-ready status.
Can it use E.S.E. pods?
Yes, without adaptation.
Does it have automatic shutoff?
Yes.
Does it have automatic power-on?
No.
What electrical service does it require?
120V, 2100W, a NEMA 5-20 plug, and a required 20-amp circuit.
Is it approved for commercial use?
No. The supplied documentation specifies residential use only.
What warranty does it include?
The supplied information lists a 12-month general warranty plus 5-year coverage on qualifying thermoblock heating assemblies and groups for domestic use.
