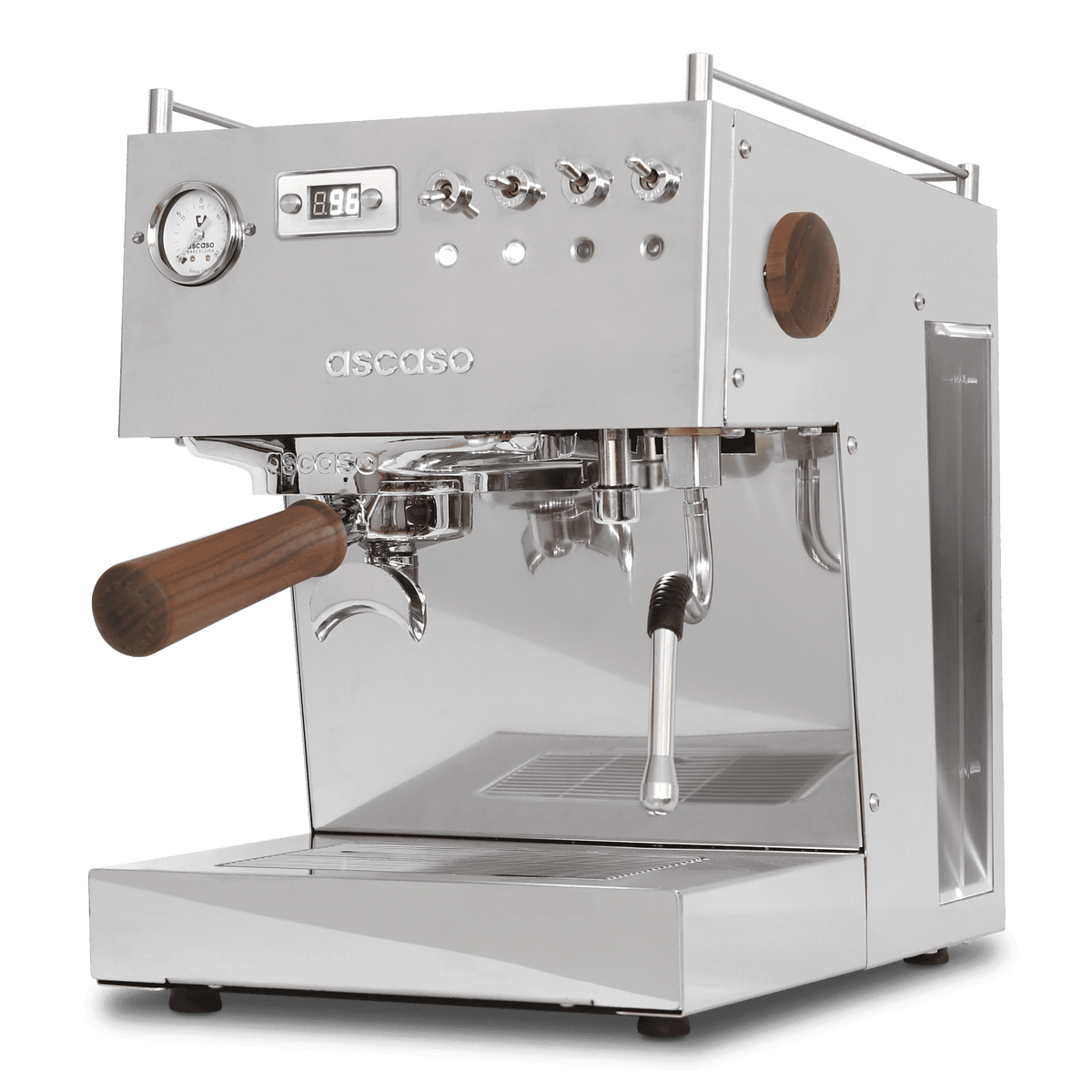

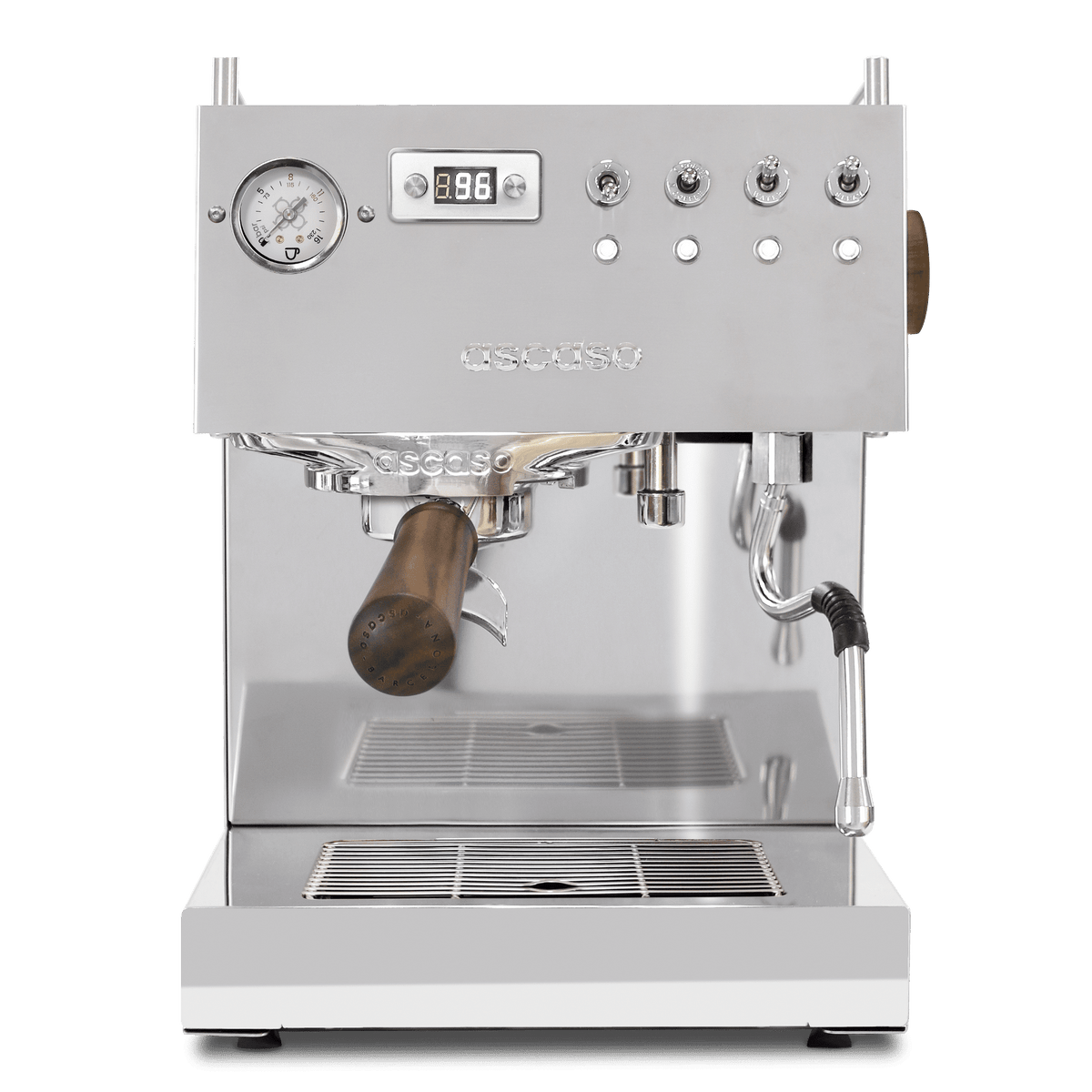

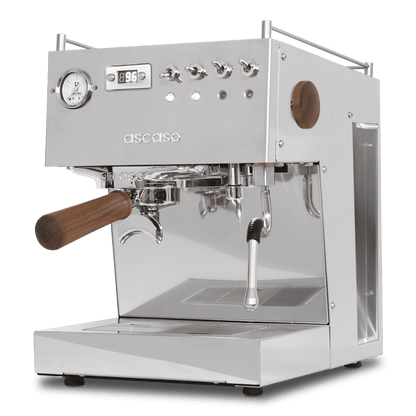

Overview
Bring a faster, more capable home-barista workflow to your kitchen with the Ascaso Steel DUO V3 PID Espresso Machine.
Designed for espresso enthusiasts who want greater control without stepping into a full-size commercial machine, the Steel DUO combines dual thermoblocks, PID temperature control, programmable volumetric dosing, adjustable pre-infusion, an analog pressure gauge, adjustable OPV, and a professional 58mm portafilter in a compact, design-forward package.
Its defining advantage is the dual thermoblock system.
One heating circuit is dedicated to brewing while the other is dedicated to steam, allowing you to pull espresso and steam milk at the same time. That makes the Steel DUO particularly appealing for cappuccino, latte, and flat-white drinkers who want a smoother workflow when preparing multiple beverages.
With a substantial metal body, walnut wood accents, fast warm-up, a 67 oz internal reservoir, and programmable controls, the Steel DUO strikes an appealing balance between traditional espresso-machine interaction and modern convenience.
It's a serious home espresso platform designed for users who want to develop their technique without giving up speed or everyday usability.
Key Features
- Dual Thermoblock System — Separate heating systems for brewing and steam support simultaneous espresso extraction and milk steaming.
- Simultaneous Brewing & Steaming — Prepare espresso and texture milk at the same time for a more efficient milk-drink workflow.
- PID Temperature Control — Digitally adjust brew temperature in one-degree increments for greater control over extraction.
- Independent Brew & Steam Temperature Management — Separate thermoblock functions allow the machine to manage espresso and steaming demands independently.
- Programmable Pre-Infusion — Customize the initial wetting stage before full-pressure extraction.
- Volumetric Single & Double Shots — Program shot volumes for easier repeatability during daily use.
- Adjustable OPV — The over-pressure valve allows brewing pressure to be fine-tuned.
- Analog Pressure Gauge — Provides a visual reference while dialing in espresso.
- Professional 58mm Portafilter — Uses a full-size 58mm platform suited to serious home espresso preparation.
- Walnut Wood Portafilter Handle — Adds a premium tactile and visual detail.
- Walnut Steam Knob — Manual steam control preserves a traditional barista-style workflow.
- No-Burn Steam Wand — Designed for more comfortable milk-texturing operation.
- Improved Pump Isolation — Updated vibration management helps reduce operating noise and movement during brewing.
- Fast Warm-Up — Supplied brew warm-up time is approximately 3 minutes 30 seconds.

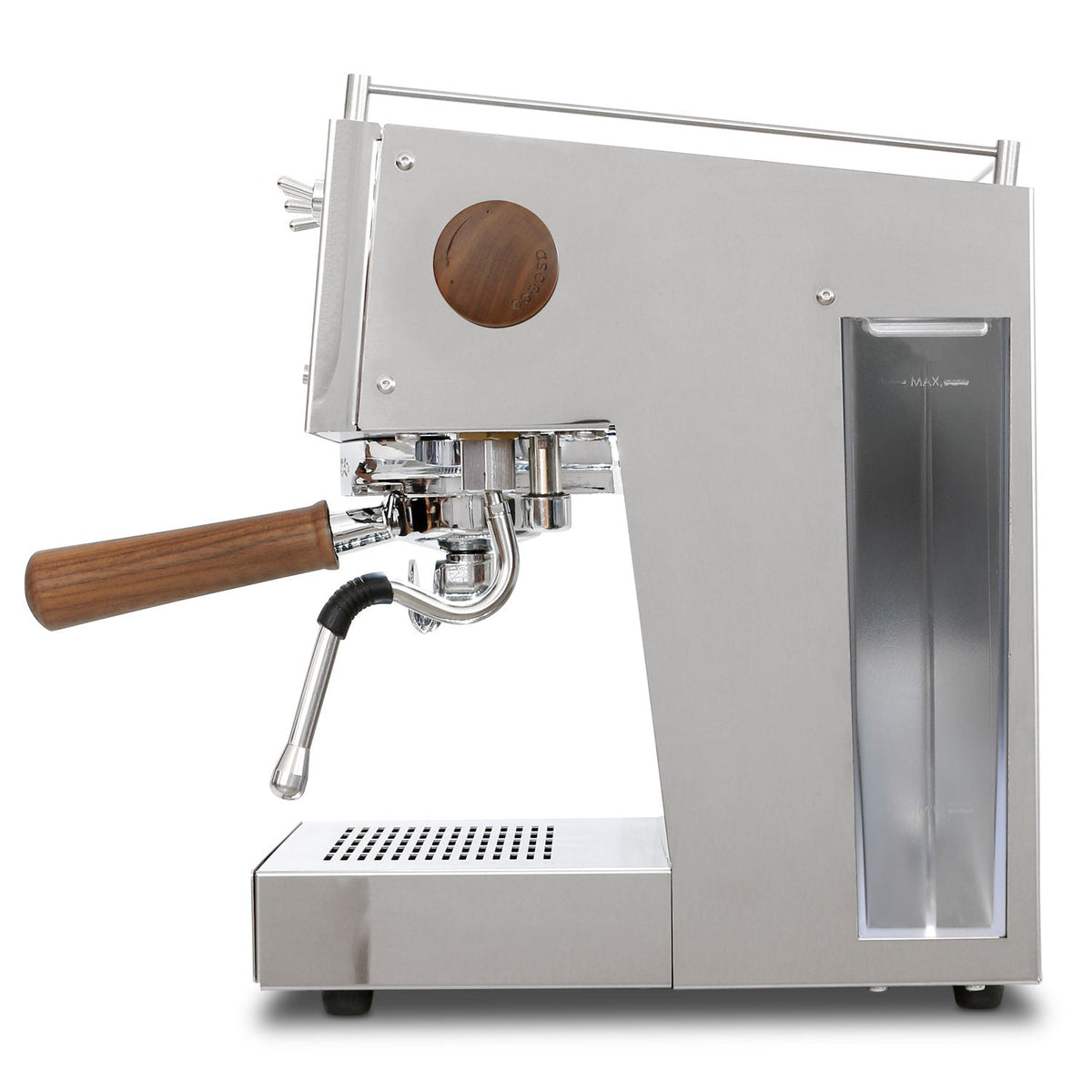

- 67 oz Water Reservoir — Larger internal reservoir supports multiple drinks without frequent refilling.
- Fresh-Water Brewing — Water is drawn as needed rather than stored long-term in a traditional brew boiler.
- AISI 316 Stainless Steel Water Circuit — Food-contact water circuitry uses stainless steel according to the supplied specifications.
- Cup Warmer — Integrated top surface helps warm cups before brewing.
- Automatic Shutoff — Includes auto shutoff for convenience and energy management.
- E.S.E. Pod Compatible — Supports E.S.E. pods without an adaptation kit.
- Residential Warranty Coverage — Includes qualifying 12-month general coverage and 5-year thermoblock/group coverage according to supplied warranty terms.
Why This Product Stands Out
Many home espresso machines can either brew or steam efficiently.
The Steel DUO is designed to do both at once.
Its dual thermoblock architecture separates brewing and steam duties, which means you don't need to finish pulling the shot and then wait for the machine to transition into steaming mode.
That difference becomes especially valuable when preparing:
- Cappuccinos
- Lattes
- Flat whites
- Cortados
- Multiple milk-based drinks back to back
The machine also offers much more control than a basic home espresso appliance.
PID temperature adjustment, programmable pre-infusion, volumetric dosing, an adjustable OPV, pressure gauge, and 58mm portafilter give users the tools to refine their espresso rather than simply pressing a button and accepting a fixed result.
The Steel DUO therefore occupies an appealing space between consumer convenience and prosumer control.
Dual Thermoblock Performance
The Steel DUO uses two separate thermoblock circuits.
Brew Thermoblock
Dedicated to espresso preparation and temperature management.
Steam Thermoblock
Dedicated to steam generation for milk texturing.
Because the functions are separated, the machine can support simultaneous brewing and steaming.
For users who frequently prepare milk-based drinks, this can significantly streamline the workflow compared with a single-heating-system machine.
PID Temperature Control
Temperature is one of the most important variables in espresso extraction.
The Steel DUO's digital PID allows brew temperature adjustment in one-degree increments, giving users more flexibility when dialing in different coffees and roast levels.
That can be especially useful when moving between:
- Light roasts
- Medium roasts
- Dark roasts
- Single-origin coffees
- Espresso blends
Combined with grind adjustment, dose, yield, and extraction time, temperature becomes another tool for tailoring the cup.
Programmable Volumetric Dosing
The Steel DUO balances manual espresso preparation with everyday convenience.
Single and double shot volumes can be programmed, helping create a more repeatable workflow once you've dialed in the coffee.
Programmable settings include:
- Pre-infusion
- Single-shot volume
- Double-shot volume
- Auto-standby behavior
This makes the machine approachable for newer users while leaving room for more advanced experimentation.
Adjustable Brew Pressure
An adjustable over-pressure valve (OPV) allows brewing pressure to be refined.
The analog pressure gauge then provides visual feedback during extraction.
Together, they give the user more insight into the brewing process than a machine with fixed pressure and no gauge.

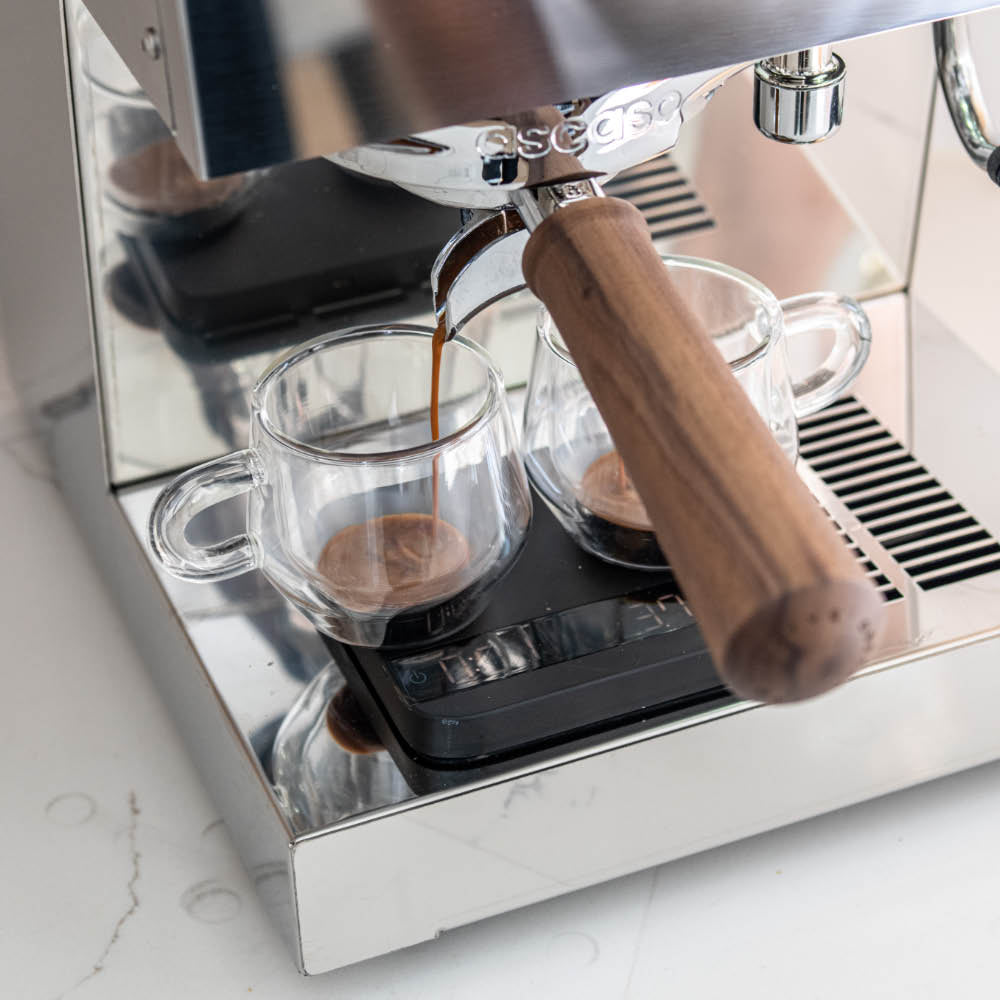

Professional 58mm Workflow
The Steel DUO uses a 58mm portafilter, bringing the workflow closer to traditional professional espresso equipment.
The larger platform also provides access to a broad ecosystem of compatible baskets and accessories.
The supplied double portafilter features a walnut wood handle, reinforcing the machine's premium design language.

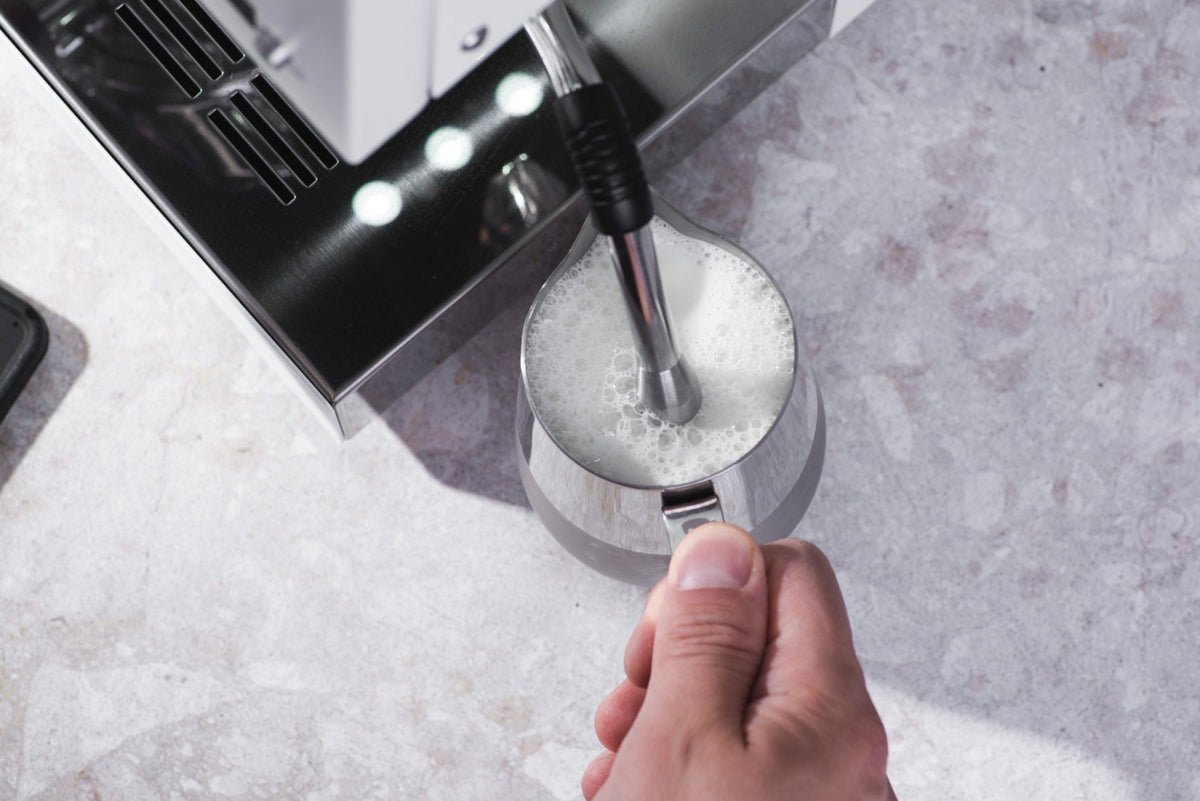

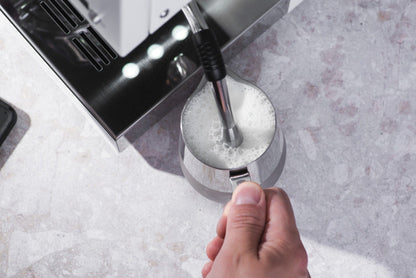

Steam Performance for Milk Drinks
The dedicated steam thermoblock is one of the Steel DUO's most important advantages.
It is designed to provide continuous steam with consistent pressure, allowing users to texture milk while the machine handles espresso separately.
The manual walnut steam knob gives direct control, while the no-burn steam wand is intended to improve comfort during daily use.
For households that primarily drink milk-based espresso beverages, the Steel DUO's steam architecture is a major reason to choose it over a single-thermoblock machine.
Energy-Conscious Thermoblock Design
Rather than keeping large boilers continuously heated, the Steel DUO uses thermoblock heating architecture.
The supplied manufacturer testing states that this design can use up to approximately 50% less energy than a traditional comparison machine under the tested conditions.
Actual energy use will vary with settings, drink volume, standby behavior, and operating habits.
The more important everyday advantage is that thermoblock heating allows the machine to combine fast warm-up with on-demand operation.

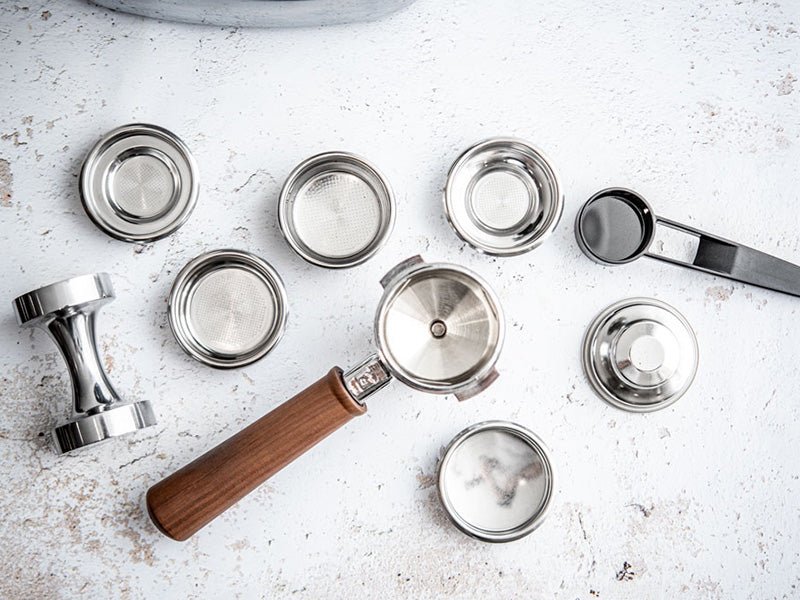

Included Accessories
The Steel DUO V3 is supplied with a comprehensive home-barista accessory package.
Included according to the supplied product information:
- 7g traditional basket
- 14g traditional basket
- 18g traditional basket
- 7g pressurized basket
- 14g pressurized basket
- E.S.E. capsule holder
- Backflush disc
- Stainless steel standard shower
- Aluminum tamper
- Double 58mm portafilter with walnut wood handle
- Gum filter-holder gasket
- Single steam tip
- Coffee scoop
- Shower brush
This selection allows users to begin with a more forgiving setup and progress toward a more traditional espresso workflow as their technique develops.
Specifications

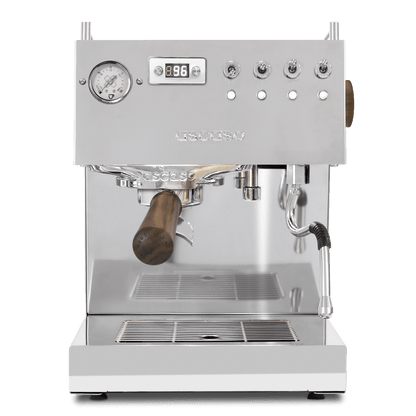

Product: Steel DUO V3 PID Espresso Machine
Brand: Ascaso
Intended Use: Residential / domestic use only
Heating System: Dual thermoblock
Simultaneous Brewing & Steaming: Yes
Width: 11 1/8" with knob / 10.5" without knob
Depth: 12.5" / approximately 17" with portafilter
Height: 15"
Power: 2100W
Voltage: 120V
Plug Type: NEMA 5-20
Electrical Requirement: 20-amp circuit
Adapter: Included according to supplied specifications
Cord Length: 50"
Programmability: PID, pre-infusion, shot timing, volumetric dosing
Body Construction: Metal body with powder-coated and polished stainless-steel exterior components per supplied product description
Heating Block Material: Stainless-steel-lined aluminum
Cup Clearance: 3"
Water Reservoir Capacity: 67 oz
Solenoid Valve: Yes
Cup Warmer: Yes
Portafilter Size: 58mm
Available Basket / Portafilter Styles: Bottomless, E.S.E., pressurized, non-pressurized
Approximate Brew Warm-Up: 3 minutes 30 seconds
Pod Compatible: Yes, without adaptation
Water Source: Internal reservoir
Auto Shutoff: Yes
Auto On: No
Pre-Infusion: Yes
Water Circuit: AISI 316 stainless steel per supplied specifications
Reservoir Material: Polycarbonate, NSF/FDA-approved for food use per supplied specifications
Flexible Tube Material: Silicone
Flowmeter Body: PBT (Arnite) 35% GF, NSF compliant per supplied specifications

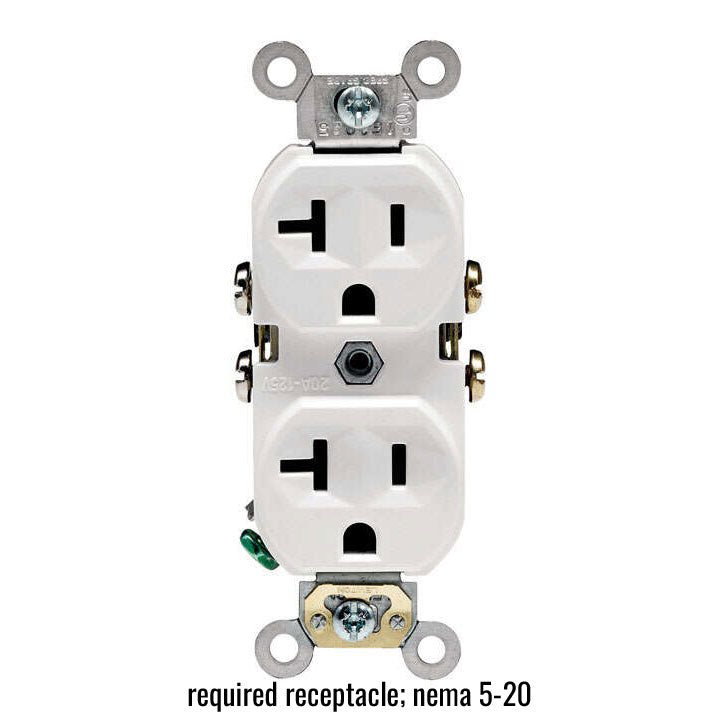

Important Electrical Requirement
The Steel DUO V3 is rated at 2100 watts and 120 volts and uses a NEMA 5-20 plug.
It requires an appropriate 20-amp electrical circuit.
Before ordering, confirm that the intended installation location has suitable electrical service.
The supplied specifications state that an adapter is included, but an adapter does not change the underlying electrical load or circuit requirements.
If you're uncertain whether your outlet and circuit are appropriate, consult a qualified electrician.

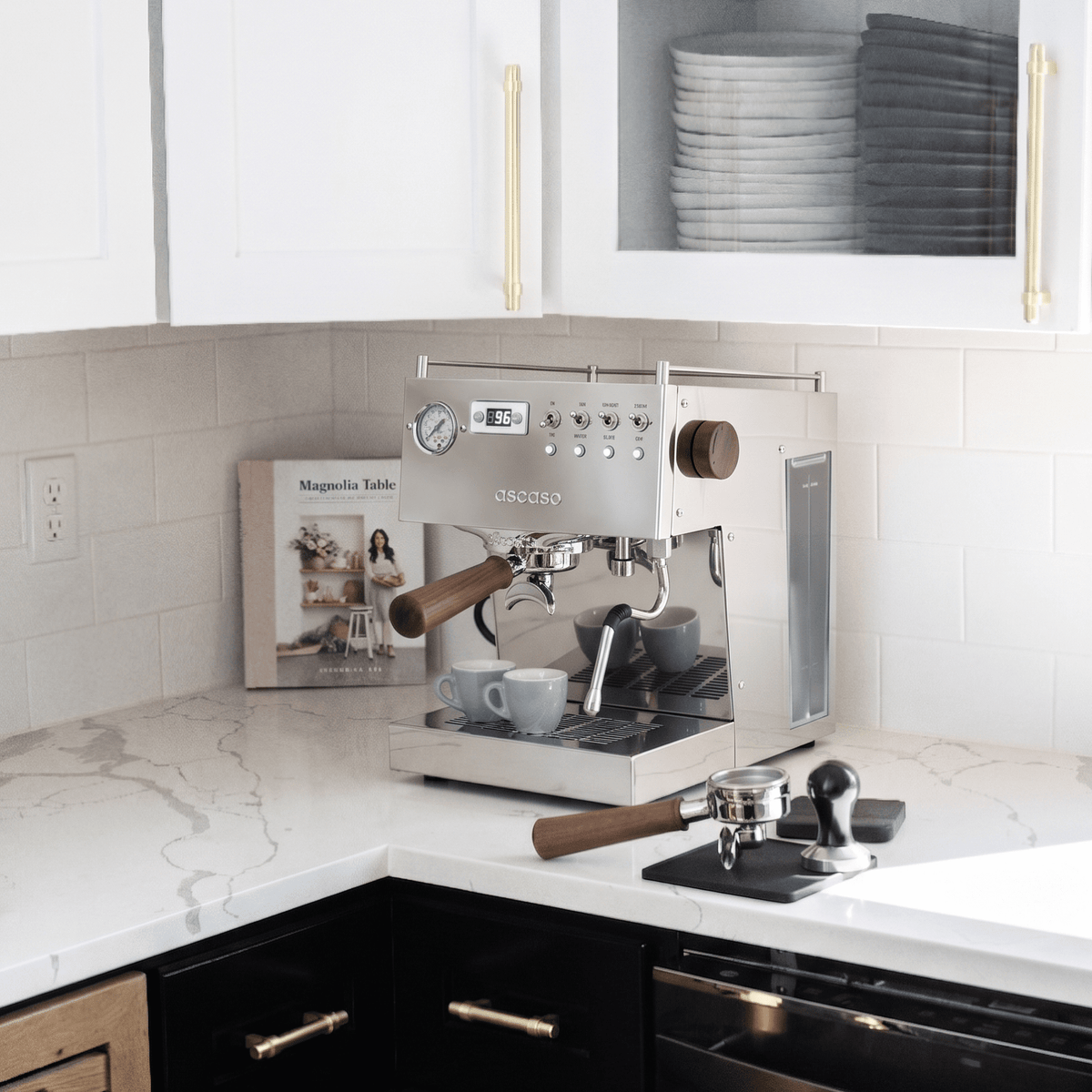

Available Finishes
The Steel DUO is offered in several finishes, including:
- Black
- White
- Inox / Stainless Steel
This allows the machine to work equally well in modern, minimalist, industrial, or more traditional kitchen environments.
Steel DUO V3 vs. Dream PID
Both Ascaso machines offer PID control and a professional 58mm workflow, but they serve different priorities.
| Feature | Steel DUO V3 | Dream PID |
|---|---|---|
| Heating System | Dual thermoblock | Single thermoblock architecture |
| Brew & Steam Simultaneously | Yes | No |
| Water Reservoir | 67 oz | 43 oz |
| Power | 2100W | 1100W |
| Width | ~10.5–11.125" | 10" |
| Portafilter | 58mm | 58mm |
| PID | Yes | Yes |
| Programmable Shots | Yes | Yes |
| Adjustable OPV | Yes | Yes |
| Pressure Gauge | Yes | Yes |
| Best Fit | Frequent milk drinks & higher-volume home workflow | Compact home espresso & approachable prosumer use |
Choose the Dream PID when compactness and simplicity are the priority.
Choose the Steel DUO V3 when simultaneous brewing and steaming, a larger reservoir, and a faster multi-drink workflow matter more.
Who This Is For
The Ascaso Steel DUO V3 is ideal for home espresso enthusiasts who want greater speed and flexibility than an entry-level machine without moving into a large commercial platform.
It's particularly well suited for:
- Serious home baristas
- Latte and cappuccino drinkers
- Couples or households preparing multiple drinks
- Espresso enthusiasts upgrading from a single-heating-system machine
- Buyers who value PID temperature control
- Users who want a professional 58mm portafilter
- Home coffee stations
- Modern kitchens
- Home offices where residential appliance use is appropriate
- Users who want programmable dosing without giving up manual control
Why Milk-Drink Drinkers Will Appreciate It
For a coffee lover who regularly prepares straight espresso, simultaneous steam may be a convenience.
For someone who regularly makes lattes or cappuccinos, it can fundamentally improve the workflow.
Instead of:
brew → wait → steam
the Steel DUO supports:
brew + steam
That distinction is one of the clearest reasons to step up to the DUO configuration.
Residential Use Only
The Steel DUO V3 is intended for home / residential use.
It is not approved for café or commercial foodservice use according to the supplied product documentation.
Commercial operation may fall outside the machine's intended operating conditions and may affect warranty coverage.
Warranty
The warranty includes:
- 12-Month General Warranty — Covers qualifying defects in workmanship and materials during domestic use.
- 5-Year Thermoblock & Group Warranty — Covers qualifying thermoblock boilers/groups according to the manufacturer's domestic-use warranty terms.
Warranty coverage is subject to the manufacturer's complete terms, exclusions, maintenance requirements, and proof-of-purchase requirements.
Care & Maintenance
Routine maintenance will help preserve performance and espresso quality.
Recommended practices include:
- Backflush according to Ascaso's instructions.
- Clean the portafilter and baskets regularly.
- Wipe and purge the steam wand after milk use.
- Empty and clean the drip tray as needed.
- Keep the reservoir clean.
- Use appropriate water within Ascaso's recommended specifications.
- Follow the manufacturer's cleaning and descaling guidance.
- Allow the machine to cool and disconnect power before deeper maintenance.
Common Questions
Can the Steel DUO brew espresso and steam milk at the same time?
Yes. Its dual thermoblock architecture allows simultaneous brewing and steaming.
Does it have two traditional boilers?
No. It uses two thermoblock heating systems, one dedicated to brewing and one dedicated to steam.
Does it have PID temperature control?
Yes. Brew temperature can be digitally adjusted in one-degree increments.
What size portafilter does it use?
A professional-style 58mm portafilter.
Can I program shot volumes?
Yes. Single and double shot volumes are programmable.
Does it have pre-infusion?
Yes.
Can brewing pressure be adjusted?
Yes. The machine includes an adjustable OPV.
Does it have a pressure gauge?
Yes. It includes an analog brew-pressure gauge.
How large is the water reservoir?
Approximately 67 ounces.
How long does it take to warm up for brewing?
The supplied specification lists approximately 3 minutes 30 seconds.
Does it have a built-in grinder?
No. A separate espresso-capable burr grinder is required.
Does it require a special outlet?
The machine is rated for 120V / 2100W and uses a NEMA 5-20 plug, requiring an appropriate 20-amp circuit.
Can it use E.S.E. pods?
Yes.
Does it have automatic shutoff?
Yes.
Does it have automatic power-on?
No.
Is it designed for commercial use?
No. The supplied documentation specifies residential use only.
What warranty is included?
There is a 12-month general warranty and 5-year coverage on qualifying thermoblock boilers and groups for domestic use.
