Overview
Brew and steam at the same time—with the precision, speed, and control serious home baristas expect.

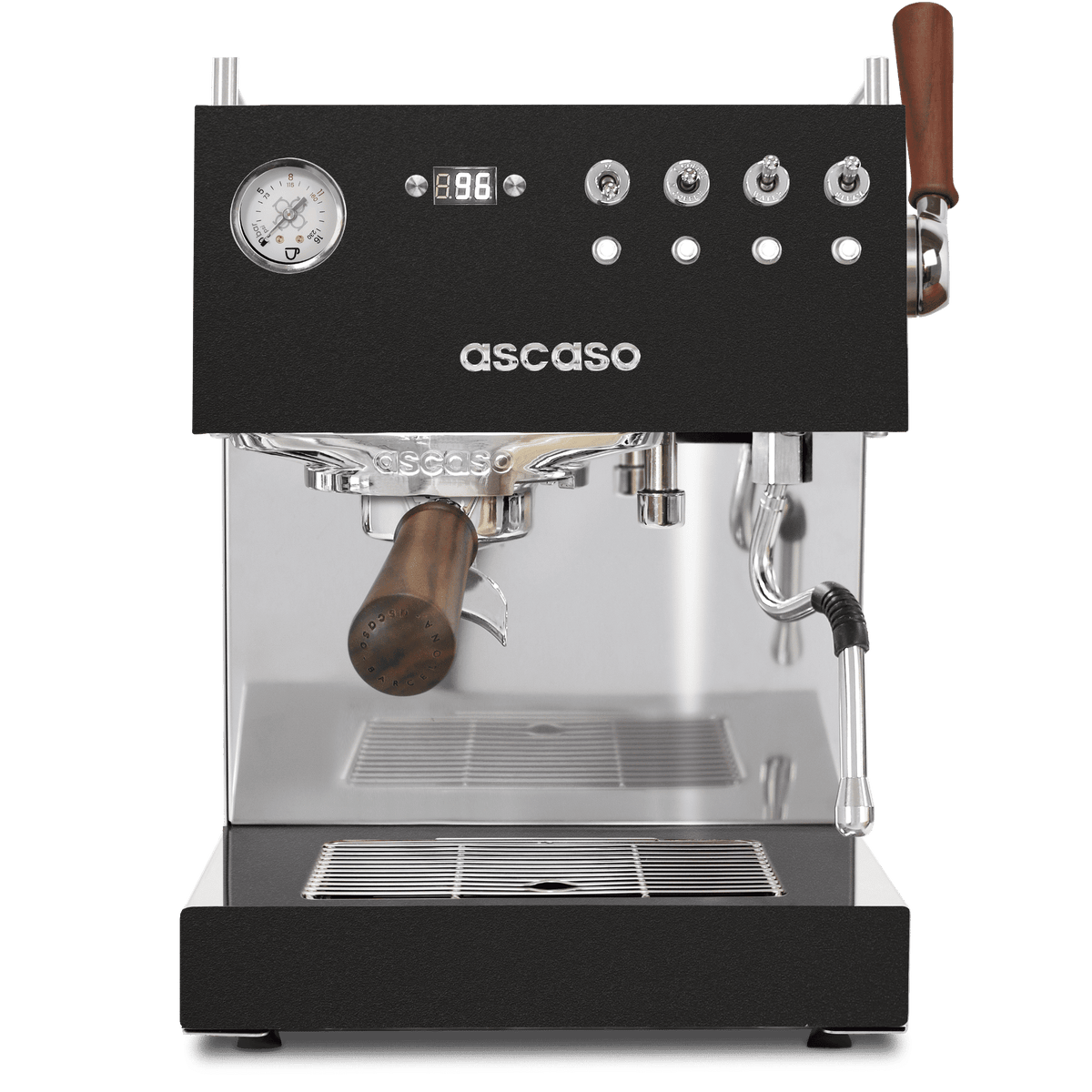

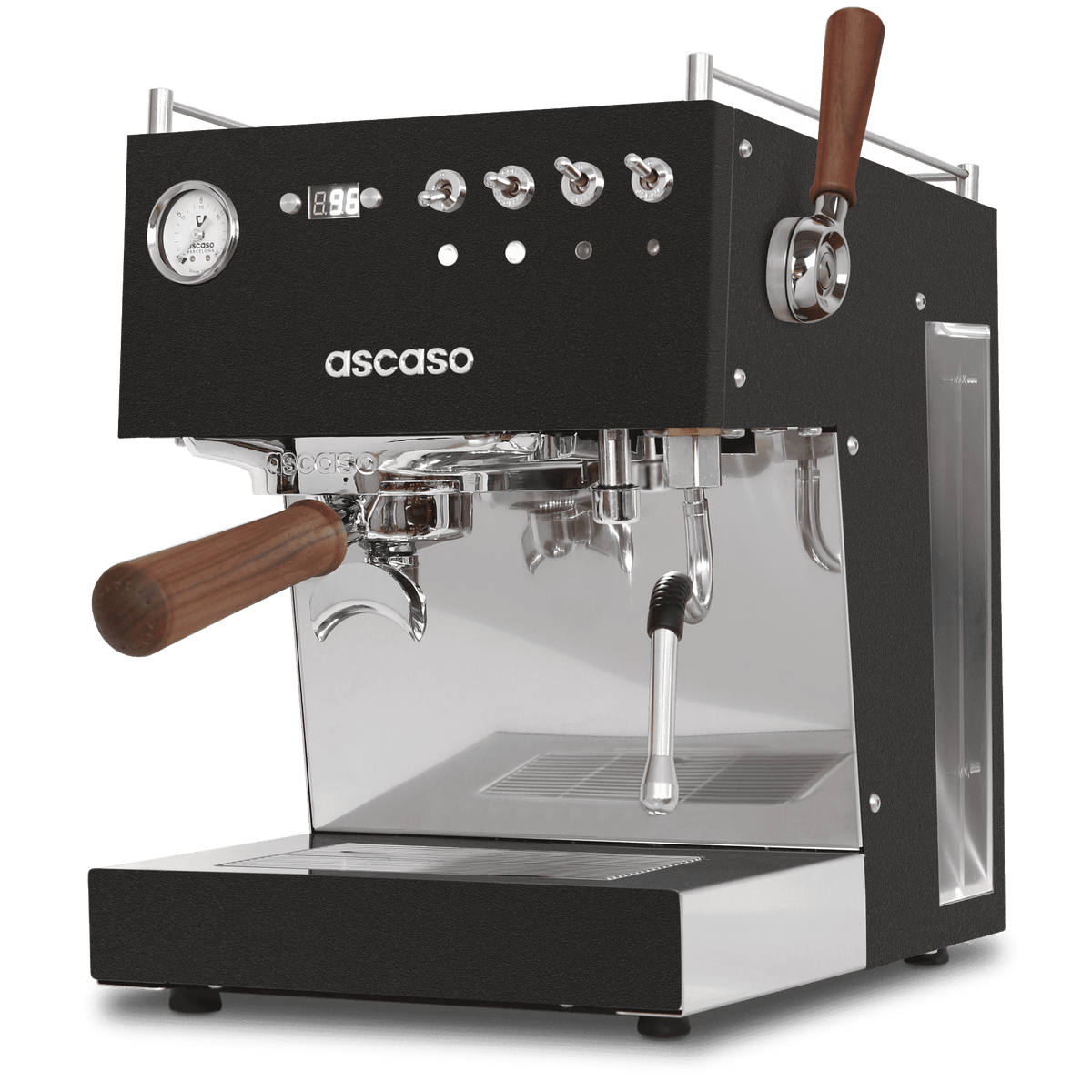

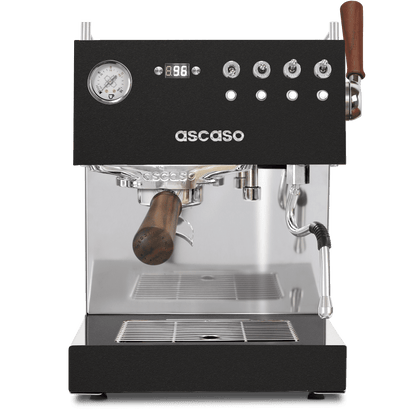

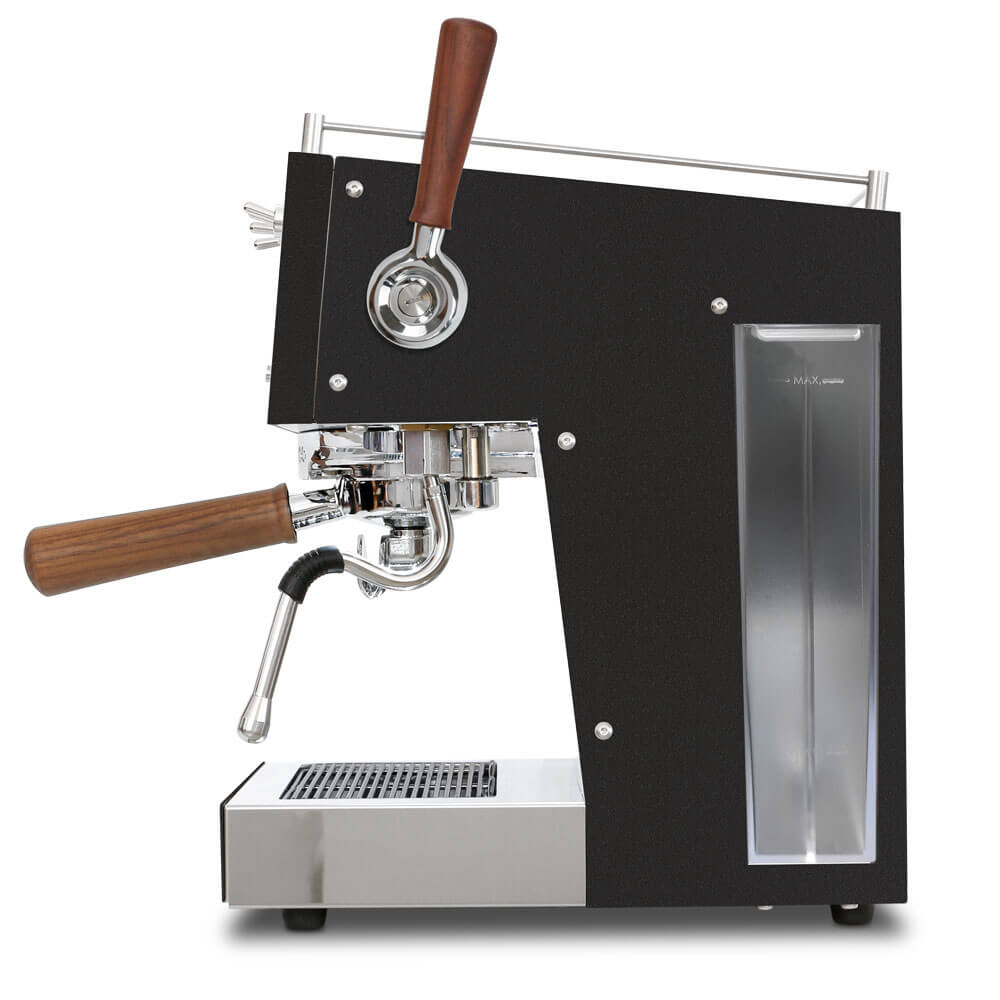

The Ascaso Steel DUO PLUS V3 PID Espresso Machine takes Ascaso's dual-thermoblock platform and equips it with a more complete set of enthusiast-level components for a faster, more refined home espresso workflow.
Two independent thermoblocks—one dedicated to espresso and one dedicated to steam—allow you to pull a shot while texturing milk, eliminating the temperature-switching wait common to single-heating-system machines.
Independent PID control gives you precise management of the brew and steam circuits, while an externally adjustable OPV, analog pressure gauge, programmable pre-infusion, volumetric dosing, competition shower screen, and professional 58mm portafilter provide the tools needed to dial in espresso with greater intention.
The PLUS configuration further upgrades the experience with a walnut joystick steam lever, dedicated hot-water tap, two steam tips, bottomless portafilter, expanded professional basket set, and stainless steel tamper.
Despite that capability, the machine remains just 10.5" wide, giving serious home espresso enthusiasts a powerful setup without requiring the footprint of a large traditional dual-boiler machine.
For the home barista who regularly prepares espresso and milk drinks and wants the machine to keep pace with their technique, the Steel DUO PLUS V3 is Ascaso's more fully equipped home-barista platform.
Key Features
- Dual Independent Thermoblocks — Separate heating circuits for espresso and steam support simultaneous brewing and milk texturing.
- Brew & Steam Simultaneously — Pull espresso while steaming milk for a faster, more café-like workflow.
- Dual PID Temperature Control — Independent temperature management for the brewing and steam circuits with precise adjustment.
- Fast Thermoblock Heating — Designed to become brew-ready quickly without heating large traditional boilers.
- Competition Shower Screen — AISI 304 stainless steel screen with an integrated smooth-surface membrane designed to promote consistent water distribution and simplify cleaning.
- Externally Adjustable OPV — Adjust maximum brewing pressure without opening the machine.
- Analog Brew Pressure Gauge — Provides real-time visual pressure feedback during extraction.
- Walnut Joystick Steam Lever — Replaces the conventional rotary steam knob with an intuitive lever-style control.
- Two Steam Tips Included — Choose between single-hole and three-hole tips to tailor milk-texturing technique.
- No-Burn Steam Wand — Insulated design helps reduce external wand temperature during operation.
- Programmable Pre-Infusion — Customize the beginning of the extraction cycle.
- Volumetric Shot Programming — Program single and double shot volumes for a more repeatable daily workflow.
- Dedicated Hot-Water Tap — Dispense hot water for Americanos, tea, cup preheating, and other compatible uses.
- Professional 58mm Portafilter Platform — Uses the industry-standard 58mm format for broad basket and accessory compatibility.
- Two Walnut-Handled Portafilters Included — Supplied with both double-spouted and bottomless portafilters.
- Expanded Basket Set — Includes 7g, 14g, 18g, and 21g baskets plus a blind basket.
- 67 oz Water Reservoir — Supports multiple drinks without constant refilling.
- Cup Warmer — Integrated upper warming surface.
- Automatic Shutoff — Supports convenient power management.
- Compact 10.5" Width — High capability without requiring excessive counter space.
- Residential Warranty Coverage — Supported by Ascaso's stated domestic-use warranty terms.
Why This Product Stands Out
The defining advantage of the Steel DUO PLUS isn't a single feature.
It's the way the features work together.
A home barista can:
pull espresso + steam milk simultaneously
while controlling:
temperature + pressure + pre-infusion + beverage volume
through a machine that still fits comfortably on a residential countertop.
The PLUS version then builds on that platform with components enthusiasts frequently upgrade separately:
- Competition shower screen
- Bottomless portafilter
- Externally accessible OPV
- Joystick steam control
- Multiple steam tips
- Dedicated hot-water outlet
- Larger professional basket selection
That makes the DUO PLUS particularly attractive for someone who wants a more complete setup from the beginning rather than gradually replacing accessories after purchase.
Dual Thermoblock Workflow
The Steel DUO PLUS uses two independent heating circuits.
Brew Thermoblock
Dedicated to espresso extraction.
Steam Thermoblock
Dedicated to milk steaming.
Because the functions operate independently, you can brew and steam at the same time rather than waiting for one heating system to change temperature.
For a household preparing cappuccinos, lattes, flat whites, or multiple morning drinks, that fundamentally changes the workflow.
Instead of:
Brew → Wait → Steam → Repeat
you can work more like a traditional espresso bar:
Brew + Steam → Serve → Repeat
Dual PID Temperature Control
Independent PID management provides precise control over both heating circuits.
For espresso, temperature can be adjusted to suit different:
- Roast levels
- Coffee origins
- Espresso blends
- Dose and extraction recipes
Meanwhile, the separate steam circuit can be managed independently rather than relying on the same heating system.
That separation gives the DUO PLUS much greater flexibility than machines that require one heating element to alternate between brewing and steam temperatures.
Competition Shower Screen
The DUO PLUS includes an AISI 304 stainless steel competition shower screen.
Its integrated membrane and smooth surface are designed to help distribute brewing water consistently across the coffee puck while also reducing areas where coffee residue can collect.
For the home barista, that means a professionally oriented group-head component is included from the beginning rather than treated as an aftermarket upgrade.
Externally Adjustable OPV
The over-pressure valve establishes the upper pressure limit delivered during brewing.
On many espresso machines, adjusting it requires opening the machine.
The DUO PLUS places the adjustment externally, making pressure tuning more accessible.
Combined with the front-mounted analog pressure gauge, this gives you both:
Control — through the OPV
and
Feedback — through the gauge
when experimenting with extraction pressure.
Analog Pressure Gauge
The analog gauge gives you a real-time reference during extraction.
That can help when:
- Dialing in a new coffee
- Adjusting grind size
- Evaluating puck preparation
- Changing OPV settings
- Troubleshooting unusual extraction behavior
It doesn't replace tasting the espresso, but it provides another useful piece of information when dialing in.
Walnut Joystick Steam Control
One of the most visible PLUS upgrades is the walnut joystick steam lever.
Instead of the standard Steel DUO's traditional rotary steam knob, the PLUS uses lever-style control designed for a more intuitive steaming workflow.
The real walnut construction also coordinates with the supplied portafilter handles, giving the machine a more unified premium appearance.
Two Steam Tips Included
The DUO PLUS includes both:
- Single-hole steam tip
- Three-hole steam tip
This allows users to experiment with different steaming styles and milk volumes.
The single-hole tip can provide a more deliberate workflow, while the three-hole configuration offers another option when greater steam distribution is desirable.
Dedicated Hot-Water Tap
The PLUS adds a separate stainless-steel hot-water outlet.
Use it for:
- Americanos
- Tea
- Preheating cups
- Rinsing compatible accessories
- Other appropriate hot-water tasks
This is a meaningful convenience upgrade for households that prepare more than straight espresso.
Professional 58mm Platform
The Steel DUO PLUS uses the professional-standard 58mm portafilter format.
This gives users access to a broad ecosystem of:
- Precision baskets
- Tampers
- Distribution tools
- Dosing funnels
- Puck screens
- Bottomless portafilters
- Other compatible espresso accessories
The DUO PLUS already includes both double-spouted and bottomless walnut-handled portafilters, reducing the number of accessories a serious home barista may want to purchase immediately.

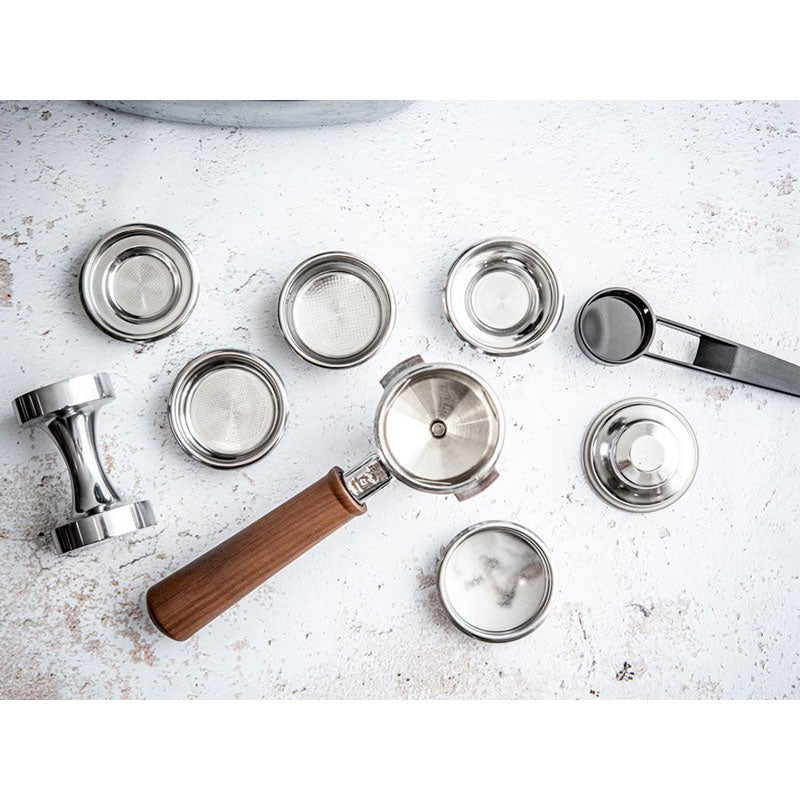

What's Included
The Steel DUO PLUS V3 includes a particularly strong accessory package:
- 58mm double-spouted portafilter with walnut handle
- 58mm bottomless portafilter with walnut handle
- 7g basket
- 14g basket
- 18g basket
- 21g basket
- Blind basket
- Stainless steel tamper
- Single-hole steam tip
- Three-hole steam tip
- Coffee scoop
This makes the PLUS significantly more complete out of the box than many premium home machines.
Specifications
Product: Steel DUO PLUS V3 PID Espresso Machine
Brand: Ascaso
Intended Use: Residential / domestic use only
Heating System: Dual independent thermoblocks
PID Control: Dual / independent brew and steam management
Simultaneous Brewing & Steaming: Yes
Width: 10.5"
Depth: 12.5"
Depth with Portafilter: Approximately 17"
Height: 15"
Height with Steam Lever: Approximately 16 3/16"
Power: 2100W
Voltage: 120V
Plug: NEMA 5-20
Electrical Requirement: 20-amp circuit based on supplied specifications
Cord Length: 50"
Programmability: PID, pre-infusion, shot timing, volumetric dosing
Case Material: Aluminum / metal construction per supplied specifications
Heating Block Material: Stainless-steel-lined aluminum
Cup Clearance: 3"
Reservoir Capacity: 67 oz
Solenoid Valve: Yes
Cup Warmer: Yes
Portafilter Size: 58mm
Included Portafilters: Double-spouted and bottomless
Compatible Portafilter/Basket Styles: Bottomless, E.S.E., pressurized, non-pressurized
Approximate Brew Warm-Up: 3 minutes 30 seconds per supplied specification table
Water Source: Internal reservoir
Pod Compatible: Yes, without adaptation
Auto Shutoff: Yes
Auto On: No
Pre-Infusion: Yes
Pressure Gauge: Analog
OPV: Externally adjustable
Shower Screen: AISI 304 stainless steel competition screen
Water Circuit: AISI 316 stainless steel per supplied specifications
Reservoir Material: Polycarbonate, NSF/FDA-approved for food use per supplied specifications
Flexible Tube: Silicone
Flowmeter Body: PBT (Arnite) 35% GF, NSF compliant per supplied specifications

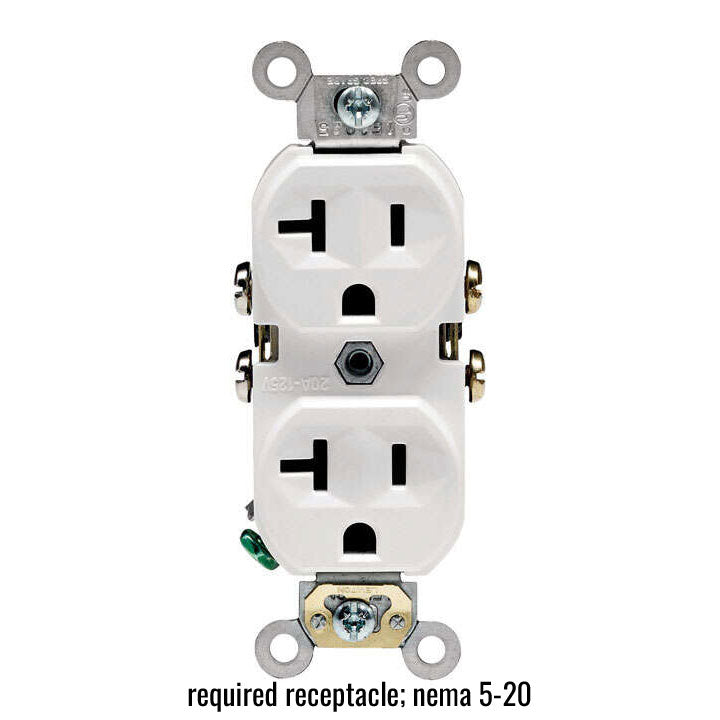

Important Electrical Requirement
The specifications supplied for this Steel DUO PLUS V3 list:
120V • 2100W • NEMA 5-20 Plug • 20-Amp Circuit Required
This should be verified before purchase.
A NEMA 5-20 receptacle is visually different from a standard 15-amp household receptacle, and the machine's electrical load should be matched to the appropriate branch circuit.
Although the supplied information states that an adapter is included, an adapter does not increase the electrical capacity of an undersized circuit.
If you're uncertain whether your intended location is properly equipped, consult a qualified electrician before installation.
Fast Home-Barista Workflow
The thermoblock system is designed around rapid on-demand heating rather than maintaining large volumes of boiler water at operating temperature.
The supplied specification table lists approximately 3 minutes 30 seconds to brew-ready status.
Like any precision espresso equipment, allowing additional time for the group, portafilter, and cups to become thoroughly warm can improve thermal consistency during a more deliberate workflow.
Energy-Conscious Heating
Ascaso's thermoblock platform is designed to heat water on demand rather than maintaining large traditional boilers at temperature continuously.
This results in approximately 50% average energy savings under its comparison testing.
Actual household energy consumption will depend on usage patterns, temperature settings, standby behavior, drink volume, and comparison equipment.
Steel DUO PLUS vs. Steel DUO
Both machines share Ascaso's core dual-thermoblock concept, but the PLUS adds several meaningful upgrades.
| Feature | Steel DUO PLUS V3 | Steel DUO V3 |
|---|---|---|
| Dual Thermoblocks | Yes | Yes |
| Simultaneous Brew & Steam | Yes | Yes |
| PID Control | Yes | Yes |
| 58mm Portafilter | Yes | Yes |
| Steam Control | Walnut joystick lever | Walnut rotary knob |
| Competition Shower Screen | Yes | Standard configuration |
| External OPV Access | Yes | Adjustable OPV |
| Hot-Water Tap | Yes | Standard configuration differs |
| Bottomless Portafilter Included | Yes | Not listed in standard package |
| Portafilters Included | 2 | 1 |
| Steam Tips | Single + three-hole | Single tip |
| Largest Included Basket | 21g | 18g |
| Tamper | Stainless steel | Aluminum per supplied information |
| Positioning | Complete enthusiast setup | Core dual-thermoblock performance |
Choose the Steel DUO V3 when the core dual-thermoblock workflow is the priority.
Choose the Steel DUO PLUS V3 when you want more of the enthusiast upgrades already included from day one.
Steel DUO PLUS vs. Dream PID
The progression within the Ascaso home lineup is also clear.
Dream PID
Compact, design-forward prosumer machine with PID control and a professional 58mm workflow.
Steel DUO V3
Adds dual thermoblocks and simultaneous brewing and steaming for a faster milk-drink workflow.
Steel DUO PLUS V3
Builds on the DUO architecture with the competition shower screen, joystick steam control, external pressure adjustment, expanded accessory package, dedicated hot-water capability, and additional enthusiast-focused components.
For frequent milk-drink preparation and a more complete home-barista setup, the DUO PLUS represents the strongest configuration of the three.
Who This Is For
The Ascaso Steel DUO PLUS V3 is designed for serious home baristas who want speed, precision, and a highly configurable espresso workflow without dedicating a large portion of the kitchen to commercial-sized equipment.
It's especially well suited for:
- Home baristas who prepare milk drinks every day
- Espresso enthusiasts upgrading from single-heating-system machines
- Couples preparing multiple drinks each morning
- Users who value simultaneous brewing and steaming
- Latte-art enthusiasts
- Buyers who want externally adjustable brewing pressure
- Users who value dual temperature management
- Home baristas who want a bottomless portafilter included
- Buyers who prefer professional 58mm accessories
- Counter-conscious espresso enthusiasts
- Customers who want a premium, design-forward machine with walnut detailing
Residential Use Only
The Steel DUO PLUS is designed for residential use.
The supplied documentation states that it is not approved for commercial or café settings.
Because commercial use may fall outside its intended duty cycle and warranty terms, I would not market this model for cafés, restaurants, hospitality venues, or workplace beverage service without written approval from Ascaso.
Warranty
The warranty includes:
- 12-Month General Warranty — Qualifying defects in workmanship and materials during domestic use.
- 5-Year Thermoblock & Group Warranty — Qualifying thermoblock heating assemblies and groups under Ascaso's domestic-use warranty terms.
Full coverage remains subject to the manufacturer's conditions, exclusions, maintenance requirements, and proof-of-purchase provisions.
Care & Maintenance
For long-term performance:
- Purge and wipe the steam wand after milk use.
- Wipe the shower screen regularly.
- Empty and clean the drip tray as needed.
- Backflush according to Ascaso's instructions.
- Clean portafilters and baskets regularly.
- Keep the water reservoir clean.
- Follow Ascaso's recommended water-quality guidelines.
- Descale only according to manufacturer instructions.
- Disconnect power and allow the machine to cool before deeper maintenance.
Water chemistry can materially affect espresso-machine performance and scale formation, so follow Ascaso's current water specifications rather than relying on generic espresso-machine recommendations.
Common Questions
Can the Steel DUO PLUS brew and steam simultaneously?
Yes. Separate brew and steam thermoblocks allow both functions to operate at the same time.
Does it use two traditional boilers?
No. It uses two independent thermoblock heating systems.
What makes the PLUS different from the standard Steel DUO?
The PLUS adds enthusiast-oriented upgrades including a walnut joystick steam lever, competition shower screen, externally accessible OPV, dedicated hot-water tap, bottomless portafilter, expanded basket set, two steam tips, and upgraded accessory package.
Does it have dual PID control?
The brew and steam circuits are independently temperature controlled.
Can I adjust brewing pressure?
Yes. The OPV is externally adjustable.
Does it have a pressure gauge?
Yes. A front-mounted analog gauge provides pressure feedback during extraction.
What size portafilter does it use?
A professional-style 58mm portafilter.
Does it include a bottomless portafilter?
Yes. Both bottomless and double-spouted walnut-handled portafilters are included according to the supplied package.
What baskets are included?
7g, 14g, 18g, 21g, and a blind basket.
How many steam tips are included?
Two: single-hole and three-hole.
Does it dispense hot water?
Yes. The PLUS includes a dedicated hot-water tap.
How large is the reservoir?
Approximately 67 ounces.
How quickly does it heat for brewing?
The supplied specification table lists approximately 3 minutes 30 seconds.
Does it have a built-in grinder?
No. A separate espresso-capable burr grinder is required.
What grinder pairs well with it?
A grinder with sufficiently precise espresso adjustment is recommended. A multi-method grinder such as the Fiorenzato AllGround can be a strong match for households that also prepare Moka or filter coffee.
Does it require a 20-amp circuit
Yes. The configuration is 120V / 2100W with a NEMA 5-20 plug and requires an appropriate 20-amp circuit.
Can I use it commercially?
No. The supplied documentation identifies it as a residential-use machine.
What warranty is included?
The warranty includes 12-month general coverage and 5-year thermoblock/group coverage for qualifying domestic use.
