Overview

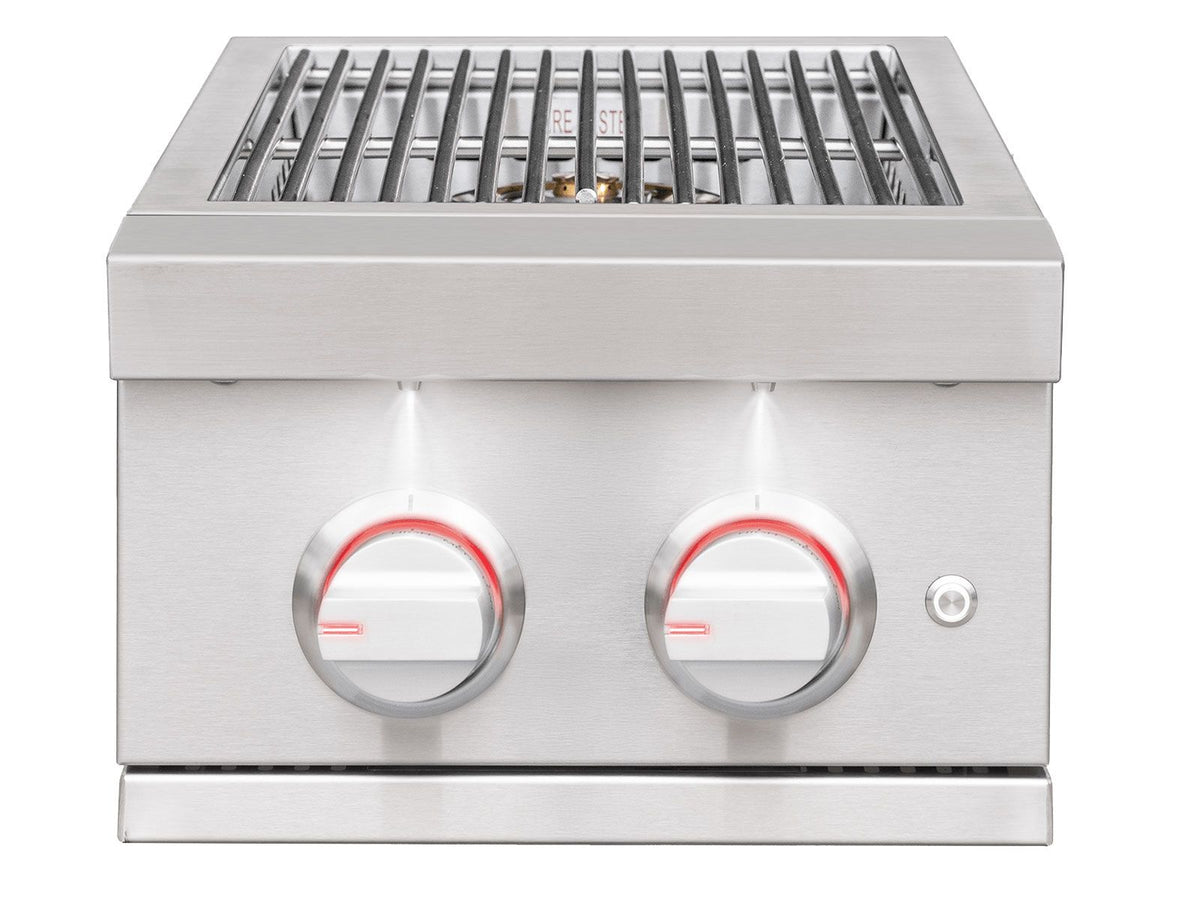

Expand your outdoor kitchen beyond the grill with the Summerset Double Side Burner with LED Lighting, a premium built-in cooking station featuring two independently controlled burners, a generous 196-square-inch cooking surface, and an illuminated front control panel.
Two 12,000 BTU burners deliver a combined rated output of 24,000 BTUs, giving you dedicated outdoor cooking space for sauces, vegetables, sides, boiling, sautéing, warming, and other stovetop preparations while your primary grill handles the main course.
The standout feature of this model is its LED front panel with white-to-red ignition indication, adding useful visual feedback and a refined appearance to the outdoor kitchen.
Constructed with a #443 stainless steel exterior, 201 stainless steel cooking grates, brass and aluminum burner components, stainless steel lid, and piezo ignition, the burner is designed to integrate cleanly into a built-in outdoor kitchen island.
Available for Natural Gas or Propane, it adds two valuable cooking zones without requiring the footprint of another full-size grill.
Dual 12,000 BTU Burners • 24,000 BTU Total • 196 Sq. In. Cooking Surface • LED Controls • NG or Propane
Key Features
- Dual 12,000 BTU Burners — Two independently controlled burners provide a combined maximum rated output of 24,000 BTUs.
- Independent Cooking Zones — Prepare two stovetop dishes simultaneously while controlling each burner separately.
- 196 Sq. In. Cooking Surface — Provides generous space for multiple appropriately sized pots and pans.
- LED Front Control Panel — Illuminated controls give this model a distinctive premium appearance within the outdoor kitchen.
- White-to-Red Ignition Indication — Integrated lighting provides visual indication associated with burner ignition status.
- Piezo Ignition — Provides a straightforward method for lighting the burners.
- #443 Stainless Steel Construction — Creates a durable, coordinated stainless appearance for built-in outdoor kitchen installations.
- 201 Stainless Steel Cooking Grates — Provide a stable cooking surface for compatible outdoor cookware.

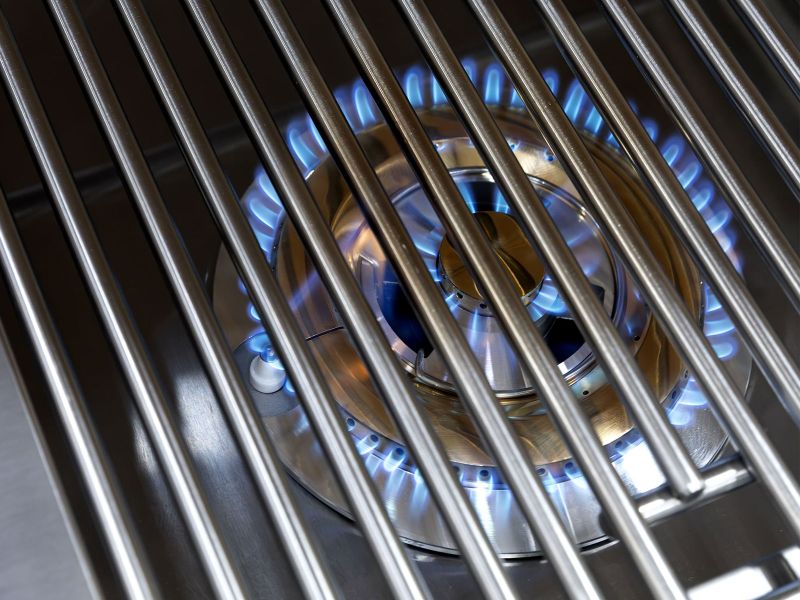

- Brass + Aluminum Burners — Burner components are constructed from brass and aluminum according to the supplied specifications.
- Stainless Steel Lid — Covers the cooking surface when the unit is not being used and creates a clean finished appearance.
- Built-In Configuration — Designed to integrate directly into an appropriately constructed outdoor kitchen island.
- Natural Gas or Propane Options — Available for either fuel type to coordinate with the appropriate outdoor kitchen fuel supply.
- Made in the USA — Manufactured in the United States.
- Compact 12 5/8" Overall Width — Adds two dedicated cooking zones without consuming the counter space of another full-size appliance.
Why This Product Stands Out
The grill doesn't need to handle every part of the meal.
Adding a dedicated double side burner gives you a second cooking station for the foods better prepared in pots and pans.
While your grill handles steaks, burgers, seafood, or vegetables, the Summerset Double Side Burner can take care of:
Sauces • Side Dishes • Sautéing • Simmering • Boiling • Warming
And because each burner is independently controlled, two different cooking tasks can happen at the same time.
What distinguishes this version further is the LED front panel and white-to-red ignition indication.
That combination gives you:
Dual-Zone Cooking + Illuminated Controls + Built-In Integration
for an outdoor kitchen that looks as considered as it cooks.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Summerset Grills |
| Product Type | Double Side Burner |
| Burner Type | Double Burner |
| Configuration | Built-In |
| Number of Burners | 2 |
| Output Per Burner | 12,000 BTUs |
| Total Rated Output | 24,000 BTUs |
| Cooking Surface Area | 196 Sq. In. |
| Fuel Type | Natural Gas / Propane |
| Exterior Material | Stainless Steel |
| Construction Material | #443 Stainless Steel |
| Cooking Grate Material | 201 Stainless Steel |
| Burner Material | Brass & Aluminum |
| Ignition Type | Piezo |
| LED Lighting | Front Panel & Ignition Indication |
| Primary Color | Stainless Steel |
| Commercial Grade | No |
| Made in USA | Yes |
Dimensions
| Dimension | Measurement |
|---|---|
| Overall Width | 12 5/8" |
| Overall Depth | 25 1/2" |
| Overall Height | 9 5/8" |
| Cutout Width | 10 3/4" |
| Cutout Depth | 20 3/4" |
| Cutout Height | 8" |
Required Cutout
10 3/4" W × 20 3/4" D × 8" H
Always confirm Summerset's current installation documentation for the exact model before constructing or modifying an outdoor kitchen island.
Who This Is For
The Summerset Double Side Burner with LED Lighting is ideal for customers building a premium outdoor kitchen who want additional stovetop cooking capacity alongside their primary grill.
It's particularly well suited for:
- Built-in outdoor kitchens
- Grill islands
- Backyard entertaining spaces
- Multi-course outdoor cooking
- Customers who frequently prepare sauces and sides
- Outdoor cooks who use pots and pans
- Customers wanting two independently controlled burners
- Outdoor kitchens with illuminated appliance controls
- Natural gas installations
- Propane installations
For customers already investing in a built-in grill, refrigeration, and storage, a double side burner can significantly expand what can be prepared without returning to the indoor kitchen.
Two Independent Cooking Zones
The biggest advantage of a double side burner is the ability to cook two different things at two different heat settings.
Each burner is rated at:
12,000 BTUs
and operates independently.
That means you can use one burner for a lower-heat task while the second handles something requiring more heat.
For example:
Burner 1: Simmer a sauce or keep a side dish warm.
Burner 2: Boil, sauté, or prepare another stovetop component.
Meanwhile, the primary grill remains available for the centerpiece of the meal.
24,000 BTUs of Combined Rated Output
Together, the two burners provide:
24,000 BTUs of maximum rated output
with 12,000 BTUs available from each burner.
Independent controls allow you to regulate the two heat zones separately rather than operating the entire cooking surface at one setting.
Actual cooking performance will depend on cookware, outdoor conditions, fuel supply, installation, and the food being prepared.
196 Square Inches of Cooking Space
The burner provides 196 square inches of cooking surface, giving you room to work with multiple appropriately sized cooking vessels.
The dual-burner layout is particularly useful when preparing meals that involve several components at once.
Instead of moving back and forth between your indoor kitchen and outdoor grill, you can keep more of the cooking process outdoors.

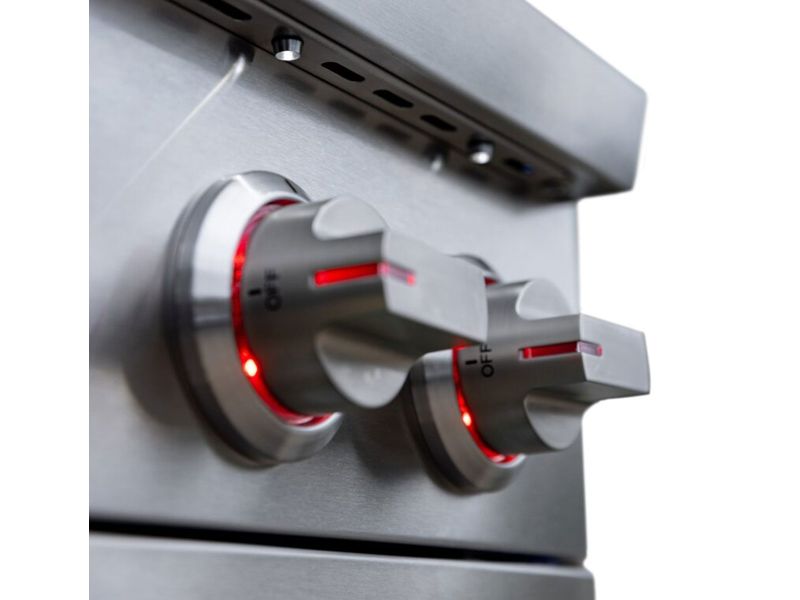

LED Front Panel
The defining upgrade on this model is the illuminated front control area.
The supplied specifications identify:
LED Front Panel + Ignition Indication
with white-to-red lighting associated with ignition status.
Beyond adding visual feedback, the illumination creates a sophisticated appearance that pairs especially well with premium outdoor kitchens used for evening entertaining.

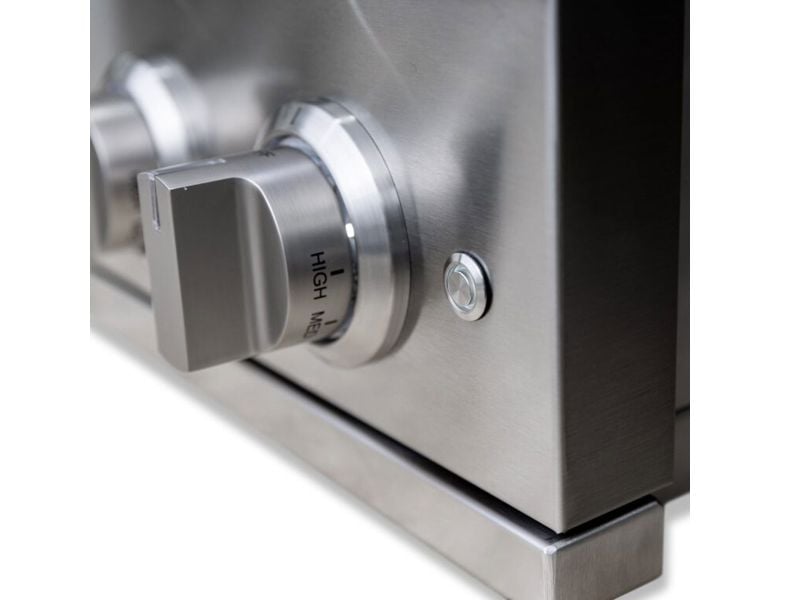

Piezo Ignition
The integrated piezo ignition system provides a convenient method for starting the burners.
Always follow Summerset's prescribed lighting sequence.
If a burner does not ignite properly, turn the burner and gas supply controls to the appropriate safe position and follow the manufacturer's relighting instructions rather than allowing unburned gas to accumulate.
#443 Stainless Steel Construction
The unit uses #443 stainless steel construction according to the supplied specifications.
The stainless exterior gives the burner the clean, architectural appearance customers expect from an integrated outdoor kitchen appliance.
It also coordinates naturally with other stainless components such as:
Built-In Grills • Refrigerators • Access Doors • Storage Drawers • Sinks
Stainless steel should not, however, be marketed as completely rustproof or maintenance free.
Regular cleaning and appropriate care remain important, especially in coastal, poolside, humid, or otherwise demanding environments.

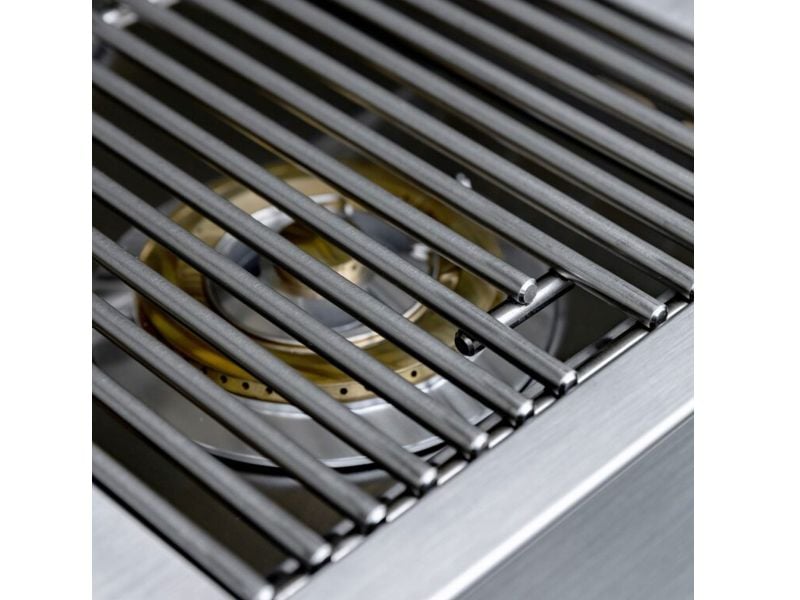

201 Stainless Steel Cooking Grates
The cooking surface incorporates 201 stainless steel grates.
These provide a stable platform for appropriately sized cookware while maintaining the stainless aesthetic of the overall unit.
Keep the grates clean and inspect them regularly according to Summerset's care recommendations.
Stainless Steel Lid
A stainless steel lid is included to cover the cooking area when the side burner isn't being used.
The lid creates a cleaner visual presentation within the outdoor kitchen and covers the cooking surface between uses.
Use the lid according to Summerset's instructions.
Do not close the lid over operating or excessively hot burners unless the manufacturer specifically instructs that this is appropriate.
Natural Gas or Propane
The burner is for:
Natural Gas or Propane
This allows customers to select the appropriate version for their outdoor kitchen.
Important Fuel Information
Natural gas and propane should not be treated as interchangeable fuels.
Customers should order the correct configuration for their installation.
Unless Summerset specifically documents an approved conversion procedure for this exact model, do not assume that a propane unit can simply be connected to natural gas—or vice versa.
Any conversion should use manufacturer-approved components and procedures.
Built-In Installation
This burner is designed for built-in installation within an appropriately constructed outdoor kitchen island.
The supplied cutout dimensions are:
10 3/4" W × 20 3/4" D × 8" H
Before fabricating the opening:
- Confirm the exact model number.
- Confirm whether the unit is Natural Gas or Propane.
- Verify current Summerset cutout specifications.
- Maintain all required combustible clearances.
- Provide required enclosure ventilation.
- Account for gas supply routing and shutoff access.
- Account for any electrical requirements associated with the LED lighting.
- Coordinate placement with adjacent grills and appliances.
- Follow applicable building and fuel-gas requirements.
Important
Do not fabricate a permanent island opening solely from retailer marketing specifications.
Always confirm the dimensions and installation requirements against Summerset's current documentation for the exact model.
Care & Maintenance
- Allow the appliance to cool before cleaning.
- Clean the cooking grates regularly.
- Remove food residue and grease buildup.
- Clean stainless steel surfaces with appropriate products.
- Avoid harsh abrasives that may damage the finish.
- Keep burner openings free from debris.
- Inspect ignition components periodically.
- Keep the LED control area clean and use care around electrical components.
- Inspect gas connections according to manufacturer recommendations.
- Follow Summerset's current care and maintenance instructions.
- Protect the appliance as recommended when it is not in use.
Common Questions
How many burners does it have?
Two independently controlled burners.
How much output does each burner provide?
Each burner is rated at 12,000 BTUs.
What is the total output?
24,000 BTUs maximum rated output.
How much cooking surface does it have?
196 square inches.
Does it have LED lighting?
Yes. For front-panel LED lighting and ignition indication.
What does the ignition lighting do?
The white-to-red ignition indication system provides visual feedback associated with burner status.
What ignition system does it use?
Piezo ignition.
What is the exterior made from?
The construction material is #443 stainless steel.
What are the cooking grates made from?
201 stainless steel.
What are the burners made from?
Brass and aluminum.
Does it include a lid?
Yes. A stainless steel lid is included.
What are the overall dimensions?
12 5/8" W × 25 1/2" D × 9 5/8" H.
What are the cutout dimensions?
10 3/4" W × 20 3/4" D × 8" H. Confirm against Summerset's current installation documentation before fabrication.
Is it available in Natural Gas?
Yes.
Is it available in Propane?
Yes.
Is it commercial grade?
No.
Is it made in the USA?
Yes.
